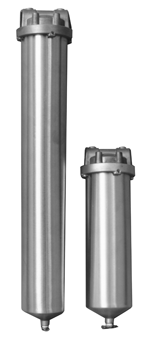

| SWT’s Heavy Duty Stainless Steel Filter Housings
are designed for food industry and high temperature applications, and accept all standard size replacement cartridges. |
| |
| FEATURES: |
| • |
Heavy Duty design for residential, commercial, and industrial applications |
| • |
High flow rates and long life |
| • |
Accepts full range of sediment and taste/odor reduction cartridges |
| • |
Available in #304 or #316 Stainless Steel |
| • |
All models available with vents and drains for easy cartridge change |
| • |
Operating Temperature Range: 40 to 300°F (4 to 149°C) |
| • |
Maximum Operating Pressure: 300 psi (20.7 bar) for 1- thru 3-cartridge models;
150 psi (10 bar) for 4- or more cartridge models |
|
| |
| |
|
|
Stainless Steel Filter Housings
for High Temperature Applications |
Part
Number* |
Number of
10 Inch
Cartridges |
Standard
Connect
Size |
Drain
Size |
Flow Rate
GPM (LPM)
**
|
Housing
Dimensions
Inches |
Ship.
Wt.
Lbs. |
| YH22401 |
1 |
3/4" FNPT |
1/4" NPT |
7 (26.5) |
3.5 x 13.5 |
6 |
| YH22501 |
1 |
1" FNPT |
1/4" NPT |
7 (26.5) |
3.5 x 13.5 |
6 |
| YH22402 |
2 |
3/4" FNPT |
1/4" NPT |
14 (53) |
3.5 x 23.5 |
8 |
| YH22502 |
2 |
1" FNPT |
1/4" NPT |
14 (53) |
3.5 x 23.5 |
8 |
| YH22403 |
3 |
3/4" FNPT |
1/4" NPT |
21 (79.5) |
3.5 x 33.5 |
11 |
| YH22503 |
3 |
1" FNPT |
1/4" NPT |
21 (7.59) |
3.5 x 33.5 |
11 |
|
| * |
Stainless steel sump and brass head is standard.
Add"-S" after the part number for stainless steel sump and stainless steel head. |
| ** |
Flow rate based on 7 gpm per 10 inch length with a 25 micron
wound cartridge at 2 psid clean and viscosity of 1 cps. Flow rates are guidelines only. |
| All models include mounting bracket, screws, and pin wrench (P/N YH40230). |
| 1/2, 3/4, and 1 inch connections available for all models. |
|
|
|
| |
| |
|
|
|
Stainless Steel Filter Housings
for High Flow Rate and High Temperature Applications |
Part
Number* |
Number of
10 Inch
Cartridges |
Standard
Connect
Size |
Drain
Size |
Flow Rate
GPM (LPM)
** |
Housing
Dimensions
Inches |
Ship.
Wt.
Lbs. |
| YH22704 |
4 |
2" MNPT |
1/2" FNPT |
28 (106) |
10.2 x 20 |
25 |
| YH22708 |
8 |
2" MNPT |
1/2" FNPT |
56 (70) |
10.2 x 30 |
31 |
| YH22712 |
12 |
2" MNPT |
1/2" FNPT |
84 (318) |
10.2 x 40 |
38 |
| YH22716 |
16 |
2" MNPT |
1/2" FNPT |
112 (424) |
10.2 x 50 |
45 |
| YH22720 |
20 |
2" MNPT |
1/2" FNPT |
140 (530) |
10.2 x 50 |
46 |
| YH22724 |
24 |
3" Flange |
1/2" FNPT |
168 (636) |
16.6 x 40 |
86 |
| YH22728 |
28 |
2" MNPT |
1/2" FNPT |
196 (741) |
12.5 x 60 |
70 |
| YH22736 |
36 |
3" Flange |
1/2" FNPT |
252 (954) |
16.6 x 50 |
92 |
| YH22748 |
48 |
3" Flange |
1/2" FNPT |
336 (1272) |
16.6 x 60 |
100 |
| YH22766 |
66 |
4" Flange |
1/2" FNPT |
462 (1749) |
21.0 x 50 |
140 |
|
| * |
304L stainless steel housing is standard. Add "-S"
after the part number for 316L stainless steel housing. |
| ** |
Flow rate based on 7 gpm per 10 inch length with a 25 micron
wound cartridge at 2 psid clean and viscosity of 1 cps. Flow rates are guidelines only. |
| 222/Fin and 226/Fin cartridge connections are available. |
|
| HIGH FLOW HOUSING OPTIONS: |
| Standard Support Legs — raise housing 2.5 inches, welded-on at factory,
includes 9/16 inch bolt holes for floor mounting, qty 3 ea. (P/N YH-LEGS-2IN) |
| Heavy Duty Support Legs — raise housing 6 inches, welded-on at factory,
includes 9/16 inch bolt holes for floor mounting, qty 3 ea. (P/N YH-LEGS-6IN-HD) |
| Mounting Tabs — raise housing 1.125 inches, bolted-on by user,
includes 7/16 inch bolt holes for floor mounting, qty 3 ea. (P/N YH-LEGS-MNT) |
|
|
|
| |
|
