Multi-Cartridge Housings
swtwater.com 4 & 5 Round Cartridge Housings
SWT offers a complete line of four and five round multi-cartridge housing models to accommodate a wide range of flow rates. Available in 1, 2, 3, or 4-high stack configurations, the standard models all feature stainless steel construction with poly-coat finish, easy access covers for quick change-outs, and FDA grade Buna-N gaskets. A variety of pipe connection styles and sizes are available to match your application.
4 and 5 Round Cartridge Housings
FEATURES
Designed for industrial and commercial filtration needs
Design pressure: 150 psig (10.3 bar) @ 300ºF (149ºC)
Heavy duty stainless steel construction for durability
Band clamp or swing bolt closures for quick cartridge change-outs
Pipe fittings readily accessible for easy installation
Knife edge seals eliminate bypass on DOE cartridges
Adjustable top plate accepts variable length cartridges
Wide range of options to meet specific filtration and installation requirements


OPTIONS AND ADD-ONS
Closure Style
V-Band Clamp or Swing Bolt
Material
304L Stainless Steel or 316L Stainless Steel
Cartridge Type
Double Open Ended Style (Standard); 222 Style (with Adapter); 226 Style (with Adapter)
Connection Size
2 inch (Standard); 1.5 inch
Connection Type
MNPT (Standard); FNPT; BSPT; BSPP; Flange; Ferrules; Grooved Fittings
Finish
Poly Coat on Exterior Surfaces (Standard); Electro-Polished; Glass Bead; Passivate
Gaskets
Buna N (Standard); EPR; Silicone; Viton; Teflon Encapsulated Silicone
Extras
Tabs; Legs; Heavy Duty Legs; Gauge Ports; Gauge Ports with Pressure Gauges; Universal Parts


4 & 5 ROUND CARTRIDGE HOUSINGS
Part
Number
Cartridges Flow Rate
GPM **
Connection Size Ship Wt Lbs
Number
Per Unit
Length
Inches *
Maximum
Diameter
Pipe
MNPT
Drain
FNPT
Vent
FNPT
Clamp
Style
Swing Bolt
Style
YH22704 4 10 2.75 28 2 0.5 0.25 25 62
YH22708 4 20 2.75 56 2 0.5 0.25 31 68
YH22712 4 30 2.75 84 2 0.5 0.25 38 74
YH22716 4 40 2.75 112 2 0.5 0.25 45 80
YH22705 5 10 2.75 35 2 0.5 0.25 26 64
YH22710 5 20 2.75 70 2 0.5 0.25 32 70
YH22715 5 30 2.75 105 2 0.5 0.25 39 76
YH22720 5 40 2.75 140 2 0.5 0.25 46 82
* Equivalent lengths accepted: 10 inch = (9.75 or 10 inch); 20 inch = (19.5 or 20 inch); 30 inch = (29.25 or 30 inch); 40 inch = (39 or 40 inch)
** Based on 7 gpm per 10 inch length with a 25 micron wound cartridge at 2 psid clean and a viscocity of 1 cps. Flow rates are for guidelines only. Actual flow rates are based on fluid, viscocity, cartridge type, micron ratings, and other factors.


DIMENSIONS
DOWNLOAD PDF TO VIEW ENLARGED VERSION

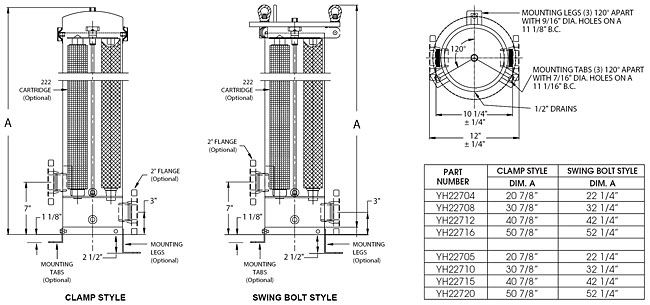

4 & 5 Round Cartridge Housings Dimensions Drawing


Mounting tabs Sanitary fittings Gauge port assembly with mounting legs Electro-polish
Mounting tabs
(may be installed at site)
Sanitary fittings Gauge port assembly
with mounting legs
Electro-polish
