SWT's Absolute Filter Cartridges
SWT’s Absolute Cartridges contain a sturdy outer netting for pleat support and protection. The support cores and end caps are manufactured of high density synthetic material for element strength and positive seals.
SWT’s Absolute Filter Cartridges are the only 100% polypropylene cartridge in the industry to be rated at 99.98% efficient within the first minute of start up. Please note that the 0.5 micron cartridge is 90% efficient even at the 0.3 micron rating within the first minute of operation. All testing was performed on actual cartridges and not on the raw sheet material. This is especially appealing to those customers that have typically been paying more for Gelman, Filterite, Osmonics, Cuno, Pall, etc., submicronic filter cartridges.

The pleated design and superior flow rates will outperform comparable cartridges. Under the same process conditions this filter will last 4 to 5 times as long as string wound or spun polypropylene cartridges.

The cartridges listed in the following table are standard 100% polypropylene media cartridges with Buna-N gaskets. Due to the sizable number of cartridge configurations available and all the variables (see the Option and Ordering Information Matrix below), please contact your SWT representative for additional information.


SWT 100% Polypropylene Absolute Filter Cartridges with Buna-N Gaskets
99.98% absolute pleated membrane using Beta 5000 test methods
Part Number Description Micron
Rating		 Cartridge
Length
Inches		 Quantity
per Case
SS-210A300LB DOE - Knife Edge 0.5 10 24
SS-220A300LB DOE - Knife Edge 0.5 20 15
SS-230A300LB DOE - Knife Edge 0.5 30 20
SS-240A300LB DOE - Knife Edge 0.5 40 15
SS-210A302LB DOE - Knife Edge 2 10 24
SS-220A302LB DOE - Knife Edge 2 20 15
SS-230A302LB DOE - Knife Edge 2 30 20
SS-240A302LB DOE - Knife Edge 2 40 15
SS-210A305LB DOE - Knife Edge 5 10 24
SS-220A305LB DOE - Knife Edge 5 20 15
SS-230A305LB DOE - Knife Edge 5 30 20
SS-240A305LB DOE - Knife Edge 5 40 15
SS-210A310LB DOE - Knife Edge 10 10 24
SS-220A310LB DOE - Knife Edge 10 20 15
SS-230A310LB DOE - Knife Edge 10 30 20
SS-240A310LB DOE - Knife Edge 10 40 15
SS-210A320LB DOE - Knife Edge 20 10 24
SS-220A320LB DOE - Knife Edge 20 20 15
SS-230A320LB DOE - Knife Edge 20 30 20
SS-240A320LB DOE - Knife Edge 20 40 15
SS-210A340LB DOE - Knife Edge 40 10 24
SS-220A340LB DOE - Knife Edge 40 20 15
SS-230A340LB DOE - Knife Edge 40 30 20
SS-240A340LB DOE - Knife Edge 40 40 15
SS-210A370LB DOE - Knife Edge 70 10 24
SS-220A370LB DOE - Knife Edge 70 20 15
SS-230A370LB DOE - Knife Edge 70 30 20
SS-240A370LB DOE - Knife Edge 70 40 15


Substitute Gasket and O-Ring Materials Available
• Viton Flat Gasket • EPR Flat Gasket • Silicone Flat Gasket • Polypropylene Flat Gasket
• Viton 222 O-Ring • EPR 222 O-Ring • Silcone 222 O-Ring • Polypropylene 222 O-Ring

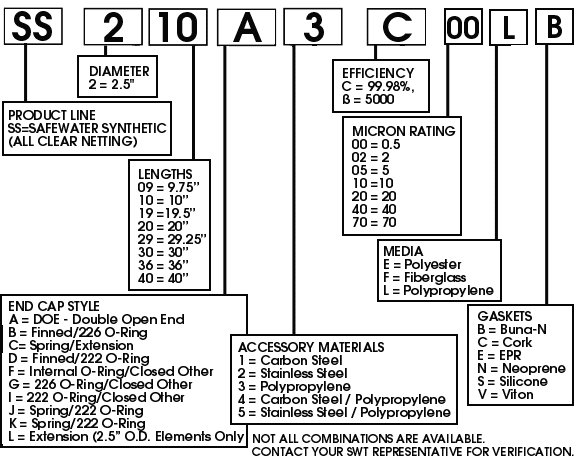

Option and Ordering Information Matrix for SWT Absolute Filter Cartridges

  SS–   2   10   A   3   00   L   B
  PRODUCT CODE   (DI)   (LN)   (EC)   (AM)   (MR)   (ME)   (GA)

(DI) DIAMETER
2 = 2.5 inch

(LN) LENGTHS
09 = 9.75 inch; 10 = 10 inch; 19 = 19.5 inch; 20 = 20 inch; 29 = 29.25 inch; 30 = 30 inch;
40 = 40 inch

(EC) END CAP STYLE
A = Double Open End (DOE); B = Finned/226 O-Ring; C = Spring/Extension;
D = Finned/222 O-Ring; F = Internal O-Ring/Closed Other; G = 226 O-Ring/Closed Other;
I = 222 O-Ring/Closed Other; J = Spring/222 O-Ring; K = Spring/Open End;
L = Open End/Extension

(AM) ACCESSORY MATERIALS — Springs, Core Extenders, End Caps
1 = Carbon Steel; 2 = Stainless Steel; 3 = Polypropylene; 4 = Carbon Steel/Polypropylene;
5 = Stainless Steel/Polypropylene

(MR) MICRON RATING
00 = 0.5 micron; 02 = 2 micron; 05 = 5 micron; 10 = 10 micron; 20 = 20 micron;
40 = 40 micron; 70 = 70 micron

(ME) MEDIA
E = Polyester; F = Fiberglass; L = Polypropylene

(GA) Gaskets
B = Buna-N; C = Cork; E = EPR; N = Neoprene; S = Silicone; V = Viton
