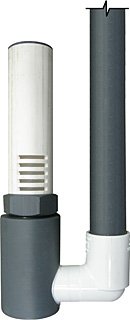

SWT Brine Pickup with Air Check
SWT Brine Pickups with Air Check prevent drawing air to add reliability and security to water treatment systems. During a power outage, the main control valve can freeze in “brine draw” mode. This condition will result in air being drawn when the brine tank empties. SWT brine pickups prevent this costly result because each brine pickup is equipped with a check to close the path from the brine tank.
Features Include:
• Requires no electrical power to operate
• All components operate hydraulically
• All components are compatible with saturated brine solution
• Tested for operation and leakage at the factory prior to shipment
• Maximum operating temperature: 140°F (60°C)
• 3/8 thru 1 inch brine pickups fit 4 inch brine wells
1-1/4 inch brine pickups fit 5 inch brine wells
• 48 inch overall length standard (available in any overall length)
PART NUMBER CONNECTION APPROX. DRAW APPROX. REFILL
BPU-3848-AC 3/8" MNPT 1 to 4 GPM No Refill
BPU-3848-AC-SPIG 3/8" Spigot 1 to 4 GPM No Refill
BPU-3848-AC-R 3/8" MNPT 1 to 4 GPM 2.4 GPM @ 6 FPS
BPU-3848-AC-SPIG-R 3/8" Spigot 1 to 4 GPM 2.4 GPM @ 6 FPS
BPU-1248-AC 1/2" MNPT 2 to 6 GPM No Refill
BPU-1248-AC-SPIG 1/2" Spigot 2 to 6 GPM No Refill
BPU-1248-AC-R 1/2" MNPT 2 to 6 GPM 4.1 GPM @ 6 FPS
BPU-1248-AC-SPIG-R 1/2" Spigot 2 to 6 GPM 4.1 GPM @ 6 FPS
BPU-3448-AC 3/4" MNPT 4 to 8 GPM No Refill
BPU-3448-AC-SPIG 3/4" Spigot 4 to 8 GPM No Refill
BPU-3448-AC-R 3/4" MNPT 4 to 8 GPM 7.7 GPM @ 6 FPS
BPU-3448-AC-SPIG-R 3/4" Spigot 4 to 8 GPM 7.7 GPM @ 6 FPS
BPU-1048-AC 1" MNPT 8 to 12 GPM No Refill
BPU-1048-AC-SPIG 1" Spigot 8 to 12 GPM No Refill
BPU-1048-AC-R 1" MNPT 8 to 12 GPM 12.9 GPM @ 6 FPS
BPU-1048-AC-SPIG-R 1" Spigot 8 to 12 GPM 12.9 GPM @ 6 FPS
BPU-12548-AC 1-1/4" MNPT 10 to 30 GPM No Refill
BPU-12548-AC-SPIG 1-1/4" Spigot 10 to 30 GPM No Refill
BPU-12548-AC-R 1-1/4" MNPT 10 to 30 GPM 23.2 GPM @ 6 FPS
BPU-12548-AC-SPIG-R 1-1/4" Spigot 10 to 30 GPM 23.2 GPM @ 6 FPS
