swtwater.com Media Loading Funnels
SWT’s Media Loading Funnels are simply designed to efficiently load underbedding and media into residential, commercial, and industrial tanks with 2.5, 4, 4.5, or 6 inch top openings. 1-1/4 inch dome hole funnel also available.


SWT Resin Funnel SM-F250 SWT Resin Funnel SM-F400 SWT Resin Funnel SM-F600
SM-F250
RESIN FUNNEL FOR
2.5” TANK OPENING
100% POLYETHYLENE
ROUND TOP OPENING
SM-F400
RESIN FUNNEL FOR
4” TO 6" TANK OPENING
100% POLYETHYLENE
ROUND TOP OPENING
SM-F400-BLACK
RESIN FUNNEL FOR
4” TO 6" TANK OPENING
100% POLYETHYLENE
OVAL TOP OPENING
SM-F600
RESIN FUNNEL FOR
6" TANK OPENING
100% POLYETHYLENE
OVAL TOP OPENING

  Part
Number
Wall
Thickness
OD
Top
OD
Bottom
Height
Overall
Height
Neck
  SM-F250 0.20" 9.5" 2.375" 7.5" 2"
  SM-F400 0.20" 10.25" 3.75" 7.25" 2"
  SM-F400-BLACK 0.14" 8.5" x 11.5" 3.75" 9.25" 2"
  SM-F600 0.14" 8.5" x 11.5" 5.75" 7.25" 2"

  DIRECTIONS FOR USE:

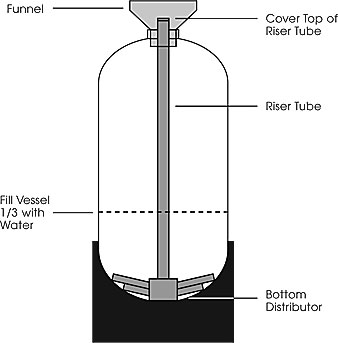

Using SWT Funnel to Load Tank with Underbedding and Media
1. Place the vessel in the desired location, then level and stabilize it.
2. Cover the top of the riser tube (a PVC plug or cap is recommended) before loading the media. This is necessary to keep the media from going down the riser tube and internally restricting the bottom distributor. Make sure that the riser tube is centered in the vessel before loading the media.
3. Fill the vessel 1/3 full of water. This will reduce the chance of damage to the distribution system when loading the vessel with media.
4. Using a funnel, slowly add the underbedding (gravel, anthracite, garnet, etc.) to the vessel.
5. Using a funnel, slowly add the resin or filtration media to the vessel.
6. After loading the required amount of media, remove the funnel, clean the tank threads, and remove the cover from the riser tube before mounting the control valve assembly.


SM-125 Funnel for Structural Threadless Dome Hole
FUNNEL FOR 1-1/4 INCH DOME HOLE
Part
Number
Wall
Thickness
OD
Top
OD
Bottom
Height
Overall
SM-F125 0.09" 6" 1.46" 14"
Dome hole funnel (P/N LC-D1340) available for LC1054C20*, LC1252C20*, and LC1354C20*.
