| SWT’s UVR Basic Series Systems are designed for point-of-use and point-of-entry applications requiring the sterilization of bacteria, viruses, and other microorganisms commonly found in some water supplies.
|
| |
 |
|
BASIC UV STERILIZATION
AT ITS BEST! |
|
These units provide an extra level of protection in homes and businesses. Use as post-treatment for carbon filters, water softeners, iron filters, and more. UV purification does not alter the taste or leave any residual in the water. |
| Standard Features |
| • |
Heavy Duty 304 stainless steel disinfection chamber construction with plasma welding |
| • |
Easy lamp replacement without having to shut off the water supply |
| • |
UV-Glow™ gland nut design provides easy removal of the quartz sleeve for cleaning and illuminates when the UV lamp is on |
| • |
Low power consumption |
| • |
Remote mounted, state-of-the-art electronic ballast |
| • |
Wall-mounting bracket included |
| • |
Available in all international voltages |
|
|
|
|
Specifications |
| Output |
30,000 µw sec/cm² |
|
Max Operating Pressure |
125 PSI |
| Wavelength |
254 nanometers |
|
Power Source |
120V/60Hz |
| Lamp Life |
9,000 hours |
|
Water Source |
Clear and filtered to 5 microns |
| Temperature |
35 to 100ºF |
|
Installation Location |
Final stage as close to point-of-use as possible |
|
| |

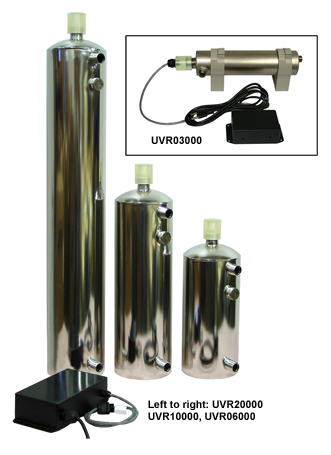

| UVR Series Ultraviolet Systems |
| Part Number |
In/Out
NPT Size
Inches |
Flow
Rate
GPM |
Voltage |
Lamp
Watts |
Power
Supply
Amps |
Chamber
Dimensions
Inches
(L x W x H) |
Shipping
Weight
Lbs. (Kg.) |
| UVR03000 |
1/2 |
3 |
120V/50-60Hz |
14 |
0.500 |
3 x 4 x 15 |
11 (5) |
| UVR03000-2 |
1/2 |
3 |
230V/50-60Hz |
14 |
0.500 |
3 x 4 x 15 |
11 (5) |
| UVR06000 |
3/4 |
6 |
120V/50-60Hz |
17 |
0.500 |
6 x 8 x 16 |
14 (6) |
| UVR06000-2 |
3/4 |
6 |
230V/50-60Hz |
17 |
0.500 |
6 x 8 x 16 |
14 (6) |
| UVR10000 |
3/4 |
10 |
120V/50-60Hz |
24 |
0.500 |
6 x 8 x 22 |
15 (7) |
| UVR10000-2 |
3/4 |
10 |
230V/50-60Hz |
24 |
0.500 |
6 x 8 x 22 |
15 (7) |
| UVR20000-2* |
3/4 |
20 |
230V/50-60Hz |
38 |
0.500 |
6 x 8 x 37 |
21 (10) |
| UVR20000/1 |
1 |
20 |
120V/50-60Hz |
38 |
0.500 |
6 x 8 x 37 |
21 (10) |
| UVR20000/1-2 |
1 |
20 |
230V/50-60Hz |
38 |
0.500 |
6 x 8 x 37 |
21 (10) |
|
| * Available while supplies last. |
| |
| |
| UVR Series Replacement Parts |
| |
|
| UV LAMPS |
| — |
UV Lamp for UVR03000, UVR03000-2
(P/N DI-LMP42002) |
| — |
UV Lamp for UVR06000, UVR06000-2
(P/N DI-LMP41004) |
| — |
UV Lamp for UVR10000, UVR10000-2
(P/N DI-LMP42005) |
| — |
UV Lamp for UVR20000, UVR20000-2, UVR20000/1, UVR20000/1-2
(P/N IL10001) |
| |
|
| QUARTZ SLEEVES |
| — |
Quartz Sleeve for UVR03000, UVR03000-2
(P/N DI-QTZD004) |
| — |
Quartz Sleeve for UVR06000, UVR06000-2
(P/N DI-QTZD005) |
| — |
Quartz Sleeve for UVR10000, UVR10000-2
(P/N DI-QTZD007) |
| — |
Quartz Sleeve for UVR20000, UVR20000-2, UVR20000/1, UVR20000/1-2
(P/N DI-QTZD009) |
| |
|
| BALLASTS |
| — |
Ballast for UVR03000, UVR06000 — 120V/50-60Hz
(P/N SWT10018EF) |
| — |
Ballast for UVR03000-2, UVR06000-2 — 230V/50-60Hz
(P/N SWT10018EF-2) |
| — |
Ballast for UVR10000 — 120V/50-60Hz
(P/N SWT10019) |
| — |
Ballast for UVR10000-2 — 230V/50-60Hz
(P/N SWT10019-2) |
| — |
Ballast for UVR20000, UVR20000/1 — 120V/50-60Hz
(P/N SWT10020) |
| — |
Ballast for UVR20000-2, UVR20000/1-2 — 230V/50-60Hz
(P/N SWT10020-2) |
| |
|
| O-RING |
| — |
Quartz Sleeve O-ring for all UVR Systems
(P/N UL-213E) |
| |
|
|
| |
|
