Water’s Edge™ Distributor System Kits are custom tailored to meet
your specific application needs. Our design engineering expertise and more than 30 years experience ensure that you
get the best distribution solution available. |
| |
 |
|

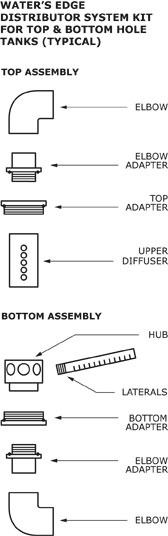

SWT’s Water’s Edge Distributor System Kits for Tanks with Top
and Bottom Threaded Openings are fabricated from non-corrosive FDA and NSF approved materials
for use in softeners, deionizers, carbon filters, sediment filters, iron filters, and multimedia filters.

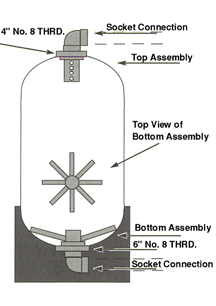

They are designed for FRP molded tanks with a 4"#8 UN threaded top opening, and a 6"#8 UN (standard) or 4"#8 UN threaded bottom opening. They can also be modified to fit tanks of other manufacture.
Water’s Edge Distributor Systems are extra strong and durable for use with heavy filtration medias (gravel, sand,
garnet) and can be used with a variety of regenerants including salt, caustics, acids, chlorine, etc. The collection
screens (laterals) have 0.010 standard slotting for use with 50 mesh filter media or larger. They are designed to
spread flow evenly across the filter bed to eliminate dead zones
and to provide even lift and separation during backwash. |
| |
| Technical Specifications |
| Max. Recommended Operating Temperature: 140°F (60°C) |
| Max Recommended Operating Pressure: 150 psi |
| ΔP @ 5 ft./sec. Velocity: ≤ 3 psi |
| Materials of Construction (Standard): PVC, ABS, Buna-N |
| Slot Width (Standard): 0.010 inch (0.254 mm) |
| Slot Area: 2.5 x Pipe Area |
| Available Options: See Notes below |
|
|
|
| |
| |
| Water’s Edge DS Kits for Top & Bottom Hole Tanks — Common Assemblies |
MODEL
NUMBER |
TANK SIZE
INCHES |
CONNECTION
SIZE |
TOP ADAPTER
BOTTOM ADAPTER
MALE THREAD
|
LATERALS
NUMBER (SIZE) |
| SM-DS162 |
16 x 65 |
2 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
6 (3/4 inch) |
| SM-DS1624TB |
16 x 65 |
2 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
6 (3/4 inch) |
| SM-DS212 |
21 x 62 |
2 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
8 (3/4 inch) |
| SM-DS2124TB |
21 x 62 |
2 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
8 (3/4 inch) |
| SM-DS242 |
24 x 62 |
2 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
8 (3/4 inch) |
| SM-DS2424TB |
24 x 62 |
2 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
8 (3/4 inch) |
| SM-DS302 |
30 x 72 |
2 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS3024TB |
30 x 72 |
2 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS3025 |
30 x 72 |
2.5 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS30254TB |
30 x 72 |
2.5 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS303 |
30 x 72 |
3 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS3034TB |
30 x 72 |
3 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS362 |
36 x 72 |
2 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS3624TB |
36 x 72 |
2 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS3625 |
36 x 72 |
2.5 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS36254TB |
36 x 72 |
2.5 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS363 |
36 x 72 |
3 inch Socket |
4"#8 UN Top
6"#8 UN Bottom |
12 (3/4 inch) |
| SM-DS3634TB |
36 x 72 |
3 inch Socket |
4"#8 UN Top
4"#8 UN Bottom |
12 (3/4 inch) |
|
| NOTES: |
|
4 inch Side Mount Valve Adapter (P/N UA-1040920) with 4"#8 UN valve base, 1.5 inch riser size,
2 inch FPT inlet/outlet available. |
|
4 inch Side Mount Valve Adapter (P/N UA-1040921) with 4"#8 UN valve base, 1.5 inch riser size,
2 inch BSP inlet/outlet available. |
|
Upper Diffuser can be slotted instead of drilled at additional cost. Add “-S” to end of part number.
|
|
Slot Widths including 0.008, 0.010 (Standard), 0.012, 0.016, 0.020, 0.032, 0.125 inch and larger are available.
|
|
Custom sizes, configurations, and materials are our specialty. Contact SWT with your requirements.
|
| |
|
