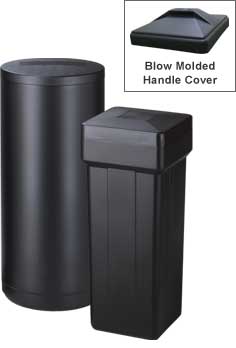

SWT's Rotationally Molded Brine and Chemical Storage Tanks
Residential Brine Tanks are very durable, non-toxic, and resistant to ultraviolet light. They are available in capacities ranging from 156 to 450 pounds of salt, with sizes ranging from 11 inches (small enough to fit in a closet) to 18 inches in diameter. All tanks and covers are black.

FEATURES:
• Made of one piece, rigid, non-toxic, high-density polyethylene for years of trouble-free service
• Integral structural design delivers strength in stress-prone areas to minimize bulging when filled with brine salt
• Blow molded cover or attractive injection molded cover
• Optional injection molded grids promote uniform brining and reduced salt bridging

Rectangular Brine Tanks — Blow Molded
Part Number Description Cover * Capacity
Gal. (liter)		 Salt Capacity
Lbs (kg)
LC-BT1138BLK 11 x 11 x 36 inch high (28 x 28 x 97 cm) BMH 19 (72) 156 (71)
LC-BT1434BLK 14 x 14 x 34 inch high (36 x 36 x 87 cm) BMH 25 (95) 225 (102)
LC-BT151733BLK 15 x 17 x 33 inch high (36 x 43 x 84 cm) IM 33 (125) 275 (125)
*  BMH = Blow Molded Handle Cover;     IM = Injection Molded Cover
Cylindrical Brine Tanks — Blow Molded
Part Number Description Cover * Capacity
Gal. (liter)		 Salt Capacity
Lbs (kg)
LC-BT1833BLK 18 dia. x 33 inch high (46 x 84 cm) BM 36 (136) 375 (170)
LC-BT1840BLK 18 dia. x 40 inch high (46 x 102 cm) BM 43 (163) 450 (205)
*  BM = Blow Molded Cover
Available Grid Plates:

PART NUMBER DESCRIPTION
LC-H1071-01 15 x 17 inch Molded Grid Plate with 4 inch Brine Well Hole
LC-H1072-01 18 inch Round Molded Grid Plate with 4 inch Brine Well Hole
LC-H1072-02 18 inch Round Molded Grid Plate with 3.5 inch Brine Well Hole
