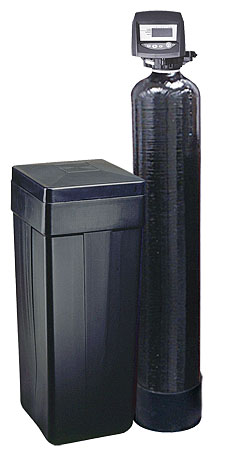

Safe Water Technologies’ Residential
Water Treatment Systems utilize ProSoft™ and
ProSelect™ Resins as
the primary functioning layers. These cationic exchange units
are designed to remove calcium, magnesium (hardness), and are
available with nitrate, chlorine, and tannin removal capabilities
also. Available with the newest in computer monitoring technology
for maximized efficiency. SWT takes care of the little extras
such as: built in by-pass
valves, spear-style riser, oversized brine tanks, an anthracite
underbedding to prevent channeling, and optional brine refill
safety floats.
- 100% rust proof system
- Energy efficient digital controller uses less than $2.00 of electricity per year
- Tanks feature 150 PSI operating pressure
- 10 year warranty on
tank
- 5 year warranty on
valve
- Automatic bypass during
regeneration
- Safety floats available
- All units come with
bypass valves
- All international voltages available
|
|
Systems for
Non-Chlorinated
Water Supplies |
Systems for
Municipal/Chlorinated
Water Supplies |
|
|
|
|
|
|
|
|
|
| 15K
- 26K Grain Residential Water Treatment Systems for Non-Chlorinated
Water |
| Part
Number |
Controller |
Softening
Capacity |
Tank
Size
Inch |
Removes |
Crosslink
(DVB) |
6
lbs.
Salt / Regen. |
12
lbs.
Salt / Regen. |
Hardness |
Chlorine,
Taste & Odor |
Nitrates |
Tannin & Organic |
| WSN941-75-T |
12 Day Clock Timer |
15,850 |
24,750 |
8x44 |
X |
|
|
|
7% |
| WSN942-75-T |
12 Day Clock Timer |
16,000 |
25,500 |
9x48 |
X |
|
|
X |
8% Fine Mesh |
| WSN943-75-T |
12 Day Clock Timer |
16,000 |
25,500 |
9x48 |
X |
|
X |
|
8% Fine Mesh |
| WSN944-75-T |
12 Day Clock Timer |
15,850 |
24,750 |
10x47 |
X |
X |
|
|
7% |
| WSN961-75-T |
Computer/Metered |
15,850 |
24,750 |
8x44 |
X |
|
|
|
7% |
| WSN962-75-T |
Computer/Metered |
16,000 |
25,500 |
9x48 |
X |
|
|
X |
8% Fine Mesh |
| WSN963-75-T |
Computer/Metered |
16,000 |
25,500 |
9x48 |
X |
|
X |
|
8% Fine Mesh |
| WSN964-75-T |
Computer/Metered |
15,850 |
24,750 |
10x47 |
X |
X |
|
|
7% |
| 15K
- 26K Grain Residential
Water Treatment Systems for Municipal/Chlorinated Water |
| Part
Number |
Controller |
Softening
Capacity |
Tank
Size
Inch |
Removes |
Crosslink
(DVB) |
6
lbs.
Salt / Regen. |
12
lbs.
Salt / Regen. |
Hardness |
Chlorine,
Taste & Odor |
Nitrates |
Tannin & Organic |
| WSC941-75-T |
12 Day Clock Timer |
15,850 |
24,750 |
8x44 |
X |
|
|
|
8% |
| WSC942-75-T |
12 Day Clock Timer |
15,850 |
24,750 |
10x47 |
X |
X |
|
|
8% |
| WSC961-75-T |
Computer/Metered |
15,850 |
24,750 |
8x44 |
X |
|
|
|
8% |
| WSC962-75-T |
Computer/Metered |
15,850 |
24,750 |
10x47 |
X |
X |
|
|
8% |
| 29K
- 35K Grain Residential Water Treatment Systems for Non-Chlorinated
Water |
| Part
Number |
Controller |
Softening
Capacity |
Tank
Size
Inch |
Removes |
Crosslink
(DVB) |
10
lbs.
Salt / Regen. |
15
lbs.
Salt / Regen. |
Hardness |
Chlorine,
Taste & Odor |
Nitrates |
Tannin & Organic |
| WSN941-10-T |
12 Day Clock Timer |
26,125 |
32,000 |
9x48 |
X |
|
|
|
7% |
| WSN942-10-T |
12 Day Clock Timer |
30,500 |
36,400 |
10x47 |
X |
|
|
X |
8% Fine Mesh |
| WSN943-10-T |
12 Day Clock Timer |
30,500 |
36,400 |
10x47 |
X |
|
X |
|
8% Fine Mesh |
| WSN944-10-T |
12 Day Clock Timer |
28,000 |
32,000 |
10x54 |
X |
X |
|
|
7% |
| WSN961-10-T |
Computer/Metered |
29,000 |
32,000 |
9x48 |
X |
|
|
|
7% |
| WSN962-10-T |
Computer/Metered |
30,500 |
36,400 |
10x47 |
X |
|
|
X |
8% Fine Mesh |
| WSN963-10-T |
Computer/Metered |
30,500 |
36,400 |
10x47 |
X |
|
X |
|
8% Fine Mesh |
| WSN964-10-T |
Computer/Metered |
26,125 |
32,000 |
10x54 |
X |
X |
|
|
7% |
| 29K
- 35K Grain Residential Water Treatment Systems for Municipal/Chlorinated
Water |
| Part
Number |
Controller |
Softening
Capacity |
Tank
Size
Inch |
Removes |
Crosslink
(DVB) |
10
lbs.
Salt / Regen. |
15
lbs.
Salt / Regen. |
Hardness |
Chlorine,
Taste & Odor |
Nitrates |
Tannin & Organic |
| WSC941-10-T |
12 Day Clock Timer |
29,000 |
34,700 |
9x48 |
X |
|
|
|
8% |
| WSC942-10-T |
12 Day Clock Timer |
29,000 |
34,700 |
10x54 |
X |
X |
|
|
8% |
| WSC961-10-T |
Computer/Metered |
29,000 |
34,700 |
9x48 |
X |
|
|
|
8% |
| WSC962-10-T |
Computer/Metered |
29,000 |
34,700 |
10x54 |
X |
X |
|
|
8% |
| 43K
- 52K Grain Residential Water Treatment Systems for Non-Chlorinated
Water |
| Part
Number |
Controller |
Softening
Capacity |
Tank
Size
Inch |
Removes |
Crosslink
(DVB) |
15
lbs.
Salt / Regen. |
22
lbs.
Salt / Regen. |
Hardness |
Chlorine,
Taste & Odor |
Nitrates |
Tannin & Organic |
| WSN941-15-T |
12 Day Clock Timer |
39,200 |
49,500 |
10x54 |
X |
|
|
|
7% |
| WSN942-15-T |
12 Day Clock Timer |
45,750 |
54,600 |
12x52 |
X |
|
|
X |
8% Fine Mesh |
| WSN943-15-T |
12 Day Clock Timer |
47,750 |
54,600 |
12x52 |
X |
|
X |
|
8% Fine Mesh |
| WSN944-15-T |
12 Day Clock Timer |
39,200 |
49,500 |
12x52 |
X |
X |
|
|
7% |
| WSN961-15-T |
Computer/Metered |
39,200 |
49,500 |
10x54 |
X |
|
|
|
7% |
| WSN962-15-T |
Computer/Metered |
45,750 |
54,600 |
12x52 |
X |
|
|
X |
8% Fine Mesh |
| WSN963-15-T |
Computer/Metered |
47,750 |
54,600 |
12x52 |
X |
|
X |
|
8% Fine Mesh |
| WSN964-15-T |
Computer/Metered |
39,200 |
49,500 |
12x52 |
X |
X |
|
|
7% |
| 43K
- 52K Grain Residential Water Treatment Systems for Municipal/Chlorinated
Water |
| Part
Number |
Controller |
Softening
Capacity |
Tank
Size
Inch |
Removes |
Crosslink
(DVB) |
10
lbs.
Salt / Regen. |
15
lbs.
Salt / Regen. |
Hardness |
Chlorine,
Taste & Odor |
Nitrates |
Tannin & Organic |
| WSC941-15-T |
12 Day Clock Timer |
43,500 |
52,000 |
10x54 |
X |
|
|
|
8% |
| WSC942-15-T |
12 Day Clock Timer |
43,500 |
52,000 |
12x52 |
X |
X |
|
|
8% |
| WSC961-15-T |
Computer/Metered |
43,500 |
52,000 |
10x54 |
X |
|
|
|
8% |
| WSC962-15-T |
Computer/Metered |
43,500 |
52,000 |
12x52 |
X |
X |
|
|
8% |
|
Part Number |
Description |
| WS-BV-30-UPG |
Brine Refill Safety Float with 3.5 inch Brine
Well |
| WS-BTBV-18-UPG |
18 x 40 inch Brine Tank with Float
Upgrade |
| -F |
Substitute ProSoft™ Fine Mesh Resin |
| -H |
Substitute ProSoft™ Heavy Duty Resin |
| -M |
Substitute ProSoft™ High Porosity Resin |
Notes:
All softeners for municipal water systems come with an upper screen as
standard equipment. Upper screens are available on all units on request.
All units come with bypass valves with 3/4” copper tube installation
fittings as standard. Other installation fittings are available on request.
Resin ratings are as follows:
| RESIN |
CROSSLINK |
CaCO3
@ 15 lb |
| ProSoft™ Gold |
7% |
32,000 |
| ProSoft™ Premium |
8% |
33,000 |
| ProSoft™ Fine Mesh |
8% |
34,600 |
| ProSoft™ Heavy Duty |
10% |
35,600 |
| ProSoft™ High Porosity |
>12% |
28,000 |
In basic terms, crosslinkage refers to the resin bead's physical strength
or ability to withstand chemical attack from chlorine, resin bed cleaners,
and caustics used in DI applications. |
X |
To a lesser extent, a higher crosslink also gives resin slightly higher
softening capacity and a better affinity for iron. Almost all standard
softening resins in the market range from 6.5% to 8% crosslink. If
the water softener is on a chlorinated system, or sitting outside where
high temperatures can weaken resin, then lower crosslink resins have
a tendency to breakdown, lose capacity, and turn mushy over time.
Generally speaking, the higher the crosslink, the better (and more
expensive) the resin. 10% crosslink resins are generally too expensive
for residential use and are found in mostly DI and industrial applications.
Fine mesh resins, which are smaller than standard size resin beads, slightly
increase the softeners capacity, speed up softening reaction time, and
increases the ability to filter fine particles from the water supply. These
are good for dual bed systems because they help retain the smaller, lighter
anion resin beads on the top layer. They are also popular in cabinet style
water softeners with shallower resin beds.
All dual bed systems require, and are automatically supplied with, a slightly
larger diameter pressure tank. Salt usage does not change in dual bed systems
vs. single bed systems. |
|
