RO Housings
SWT logo More Information:

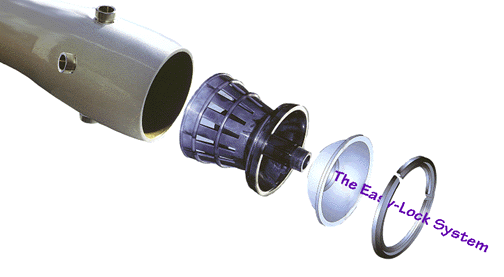

The Easy-Lock System

Cost Effective
By utilizing automated manufacturing techniques, value-based raw materials, and continuous implementation of superior design elements such as the innovative new end-cap assembly and a replaceable side port, SWT's corrosion-resistant FRP pressure vessels are the clear choice in system construction.

Providing Solutions
SWT's high-tech expertise in the field of composite technology has lent itself to the design and manufacture of a variety of high performance FRP vessels, adapting them to the growing need of the water treatment industry. At Safe Water Technologies, providing solutions is what we do best!

4 Inch and 8 Inch Diameters:
  • Designed for a wide range of operating pressures (up to 1200 psi)
  • Flexibility of side-port or end-port configuration
  • Accommodates up to 8 membranes in each vessel
  • Accommodates any model 4 inch and 8 inch membrane
  • Designed and tested with a safety factor of six times the working pressure
  • Designed and tested to withstand 100,000 cycles, as an absoulute minimum
  • Each vessel is factory tested at 1.5 times the maximum working pressure



New Multiple Ports

By eliminating auxiliary manifolds, multiple side ports (of up to 4 on each end of the vessel) are now available on all of SWT's 8 inch side-port vessels — hence reducing system costs and providing greater design versatility.

Victaulic ports are available in either 1 inch, 1.5 inch, 2inch, and 2.5inch configurations.


Unsurpassed Reliability

Each pressure vessel is designed, manufactured and tested according to the strict requirements of ASME Code Section X, the internationally recognized standard for pressure vessel construction.

In addition, SWT's quality system strictly complies to ISO 9001 Quality Standards.
