Safe Water Technologies’ Residential
Water Treatment Systems utilize ProSoft™ & ProSelect™ Resins
as the primary functioning layers. These cationic exchange
units are designed to remove calcium, magnesium (hardness),
and are available with nitrate, chlorine, and tannin removal
capabilities. Available with the newest in computer
monitoring technology for maximized efficiency. SWT takes
care of the little extras such as: bolted on bases for ease
of carrying, built in by-pass valves, spear-style riser,
oversized brine tanks, an anthracite under-bedding to prevent
channeling, and optional brine refill safety floats.
• Corrosion
free wound
• fiberglass tanks
• Less
than $2.00 of electricity
• annually
• 10
year warranty on tank
• 5
year warranty on valve
• Automatic
bypass during
• regeneration
• Safety
floats available
• All international
voltages
• available
• All units
come with tank
• jackets and bypass
valves
• NOVRAM™ memory
storage
• programming
and battery
• backup
on electronic controls
|
|
XX |
Quality
Water 100% of the Time!

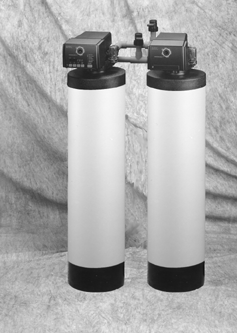

The Safe
Water Technologies' AllSoft™ System is
the latest in a long line of innovations from SWT. Its
twin-tank, one-control design provides continuous soft
water with flexibility and monitoring that the competition
cannot match! The AllSoft™ digital
computer system allows for optimizing of a wide variety
of applications through fully-programmable parameters.
The AllSoft™ System electronically
monitors water usage and stores it in NOVRAM memory. This allows in-depth
analysis of water usage patterns and provides diagnostic insight. When
combined with the controls' optimization ability, the AllSoft™ system
offers efficiency and versatility that is unparalleled in the industry
today!
Continuous
Treated Water: The AllSoft™ twin-tank
system provides continuous soft water all day. Everyday!
One tank is always in service, while the other tank is
in regeneration. The AllSoft™ system can be configured
to allow the user to isolate one tank for servicing while
the other tank still provides soft water.
Soft
Water Backwash: The AllSoft™ system
backwashes with softened water to eliminate hardness
carry-over. The AllSoft™ system
is also extremely efficient, using as little as 30
gallons of soft water to regenerate.
Product Reliability: The
AllSoft™ system combines the time-proven SWT
960 Series valve body, with the innovative electronic
controls of the Magnum Cv™ Series product
line, to provide a reliable product. Dealers do
not need to stock new parts for this system because
standard service parts for SWT residential
systems are all that are required.
Memory and History Capabilities: The
AllSoft™ system meters and stores water usage.
This data can be displayed, allowing the user to
monitor usage and fine-tune the cycle settings
accordingly.
Easy-to-Read Display: The
AllSoft™ controllers have a large six-digit
display, allowing the user to easily view the remaining
capacity and flow rate. The controller also clearly
displays which tank is in service and which is in
regeneration or standby.
|
| Computer
Controlled/Monitored Softeners |
| Part
Number |
Tank
Size
Inches |
CaCO3
(Hardness) Capacity Per Tank |
Service
Standard
Flow Rate |
Service
Peak
Flow Rate |
Standard
Connection
Size |
@
6 lbs/ft³
(Grains/Gal.) |
@
10 lbs/ft³
(Grains/Gal.) |
@
15 lbs/ft³
(Grains/Gal.) |
| WSC96T-50-T |
7 x
44 |
11,000 |
13,775 |
16,750 |
3 GPM |
6 GPM |
3/4" Copper |
| WSC96T-75-T |
8 x 44 |
16,500 |
20,650 |
25,125 |
4 GPM |
8 GPM |
3/4" Copper |
| WSC96T-10-T |
9 x 48 |
22,000 |
27,550 |
33,500 |
5 GPM |
10 GPM |
3/4" Copper |
| WSC96T-15-T |
10 x 54 |
33,000 |
41,325 |
50,250 |
7.5 GPM |
15 GPM |
3/4" Copper |
| WSC96T-20-T |
12 x 52 |
44,000 |
55,100 |
67,000 |
10 GPM |
15 GPM |
3/4" Copper |
X
Other
connections available.
Operating capacity based on influent of 500 ppm as CaCO3
with ratio of 2 parts calcium to 1 part magnesium.
Operating pressure: 20 to150 psi (1.4 to 10.3 bar)
Operating temperature: 36 to 120ºF (2 to 48.9ºC)
All pressure vessels are wound fiberglass, reinforced polyethylene,
and are NSF® listed.
All control valves are and NSF® listed.
International voltages available.
Units include carton, bypass valves, and tank jackets.
Capacities include a 5 to 10% safety factor. |
| The Competition Doesn't Compare! |
Fleck 9000 |
Kinetico Twin |
SWT
AllSoft™ |
| Modular unit, doesn't disturb bed when removing
valve from tank |
No |
No |
Yes |
| Common parts with other family valves |
No |
Yes |
Yes |
| Low cost / highly advanced electronics |
No |
No |
Yes |
| Flow and usage history at the touch of a button |
No |
No |
Yes |
| Isolation of unit for servicing* |
No |
No |
Yes |
X
*Isolation
is configuaration-dependent |
|
|
