SWT's MP Series Pleated PES Membrane Cartridge
Made in USA
Certified Pleated Polyethersulfone (PES) Membrane Cartridges
SWT’s MP Series filter cartridges are shipped with Quality Assurance Certificates with a formal efficiency claim of >99.9% at the rated pore size. The polyethersulfone construction ensures excellent chemical compatibility, high loading capacity, and high flow rates.


Advantages
• All materials meet FDA requirements for food contact (21CFR)
• High flow rates, long on-stream life
• Aqueous extracts contain less than 0.25 EU/ml
• Broad chemical & pH compatibility
• USP Class VI-121ºC certified
• Integrity tested
• Thermally bonded

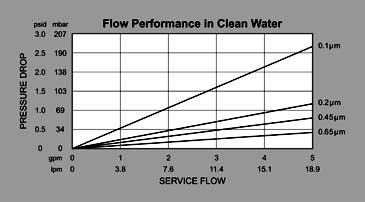

SWT Series MP Absolute Cartridge Flow Graph


Applications
Beverage, pharmaceutical, & chemical industries; Ink and dye filtration; Acids, bases, oxidants; Process water; Serums & tissue culture media


Specifications
Effective Filtration Area:
8.1 sq.ft. (0.75 sq.m)		 Maximum Operating Temperature (water):
180ºF (82ºC) @ 10 psid (0.69 bar)
Diameter:
Outside: 2.75 inch (70 mm)
Inside: 1.25 inch (31 mm)		 Maximum Differential Pressure:
Forward: 60 psi (4.1 bar) @ 70ºF (21ºC)
Reverse: 30 psi (2.1 bar) @ 70ºF (21ºC)
Materials of Construction:
Filter Media: Polyethersulfone membrane
Media Support: Polypropylene microfiber
Components: Polypropylene
Sealing: Thermal bonding		 Integrity Testing:
0.1 μm: ≤ 45 cc/min @ 50 psig (3.4 bar)
0.2 μm: ≤ 19 cc/min @ 30 psig (2.1 bar)
0.45 μm: ≤ 16 cc/min @ 20 psig (1.4 bar)
0.65 μm: ≤ 12 cc/min @ 13 psig (0.9 bar)


Ordering Information
Part Number Matrix:
SO-MP-PES (MR) (A1) (A2) (NL) (SM)
(MR) Micron Rating
01 = 0.1 micron
02 = 0.2 micron
45 = 0.45 micron
65 = 0.65 micron		 (NL) Nominal Length
10 = 10 inch (25.4 cm)
20 = 20 inch (50.8 cm)
30 = 30 inch (76.2 cm)
40 = 40 inch (101.6 cm)
(A1) End Adapter #1 *
A = Flat end gasket
B = 120 internal o-ring
C = 213 internal o-ring
E = 222 o-ring
F = 226 o-ring
J = 020 internal o-ring
Q = 222 o-ring with SS insert
Z = 226 o-ring with SS insert 		(SM) Seal Material
B = Buna-N
E = EPDM
S = Silicone
T = Teflon Encapsulated (only 222 & 226)
V = Viton
(A2) End Adapter #2 *
A = Flat end gasket
B = 120 internal o-ring
C = 213 internal o-ring
G = Closed end cap
H = Fin adapter		 Example:
SO-MP-PES02AA30S is a 0.2 micron absolute rated filter cartridge, 30 inch nominal length, double open end (DOE) configuration with silicone seals.

* View End Adapter Equivalent Codes.


Shipping Information
Nominal Length Quantity
Per Carton 		Approx. Ship. Wt.
inch cm lb kg
10 25 18 15 6.8
20 51 16 24 10.9
30 76 6 13 5.9
40 102 6 17 7.7
