Sediment Filtration
swtwater.com Inline Centrifugal Sediment Filter
Chemical Resistant

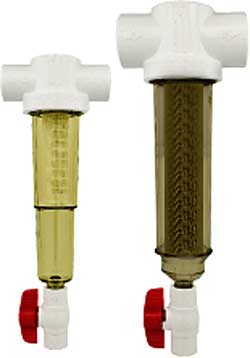

Chemical Resistant Inline Centrifugal Sediment Filters

Chemical
Resistant
Sediment
Trapper
Filter
Chemical
Resistant
Spin Down
Sediment
Filter


Screen Sizes
Mesh Microns Opening
inches mm
24 711 0.028 0.711
30 533 0.021 0.533
40 381 0.015 0.381
60 254 0.010 0.254
100 152 0.006 0.152
140 104 0.004 0.102
200 74 0.0029 0.073
250 61 0.0024 0.061
500 30 0.0012 0.030
1000 15 0.0006 0.0152


Inline Centrifugal Sediment Filter Dimensions

Spin Down Filter Dimensions
Port
Size
Length
inches
Width
inches
Flow
gpm
3/4" 11-3/8 5 1-25
1" 11-3/8 5 1-25
1-1/2" 15-3/8 5-1/4 10-50
2" 17-7/8 5-1/2 18-100

Sediment Trapper Filter Dimensions
Port
Size
Length
inches
Width
inches
Flow
gpm
3/4" 14-3/8 5 1-25
1" 14-3/8 5 1-25
1-1/2" 15-3/8 5-1/4 10-50
2" 17-7/8 5-1/2 18-100


Replacement Parts Available
Inline Centrifugal Sediment Filter Replacement Parts

1. Body
2. Element O-ring
3. Element
4. Cover O-ring
5. Cover
6. Purge Valve

Chemical Resistant Spin Down Sediment Filters feature a chemically resistant cover for use in applications with potentially corrosive and damaging chemicals. These filters utilize centrifugal force to separate sediment from water. Sediment accumulation can be seen through the clear cover and easily discharged through the bottom flush valve.
Sediment Trapper Filters offer a larger storage area (less maintenance time) and a unique element that separates the sediment and traps it beneath the element where it collects until flushed away.
Uses include reclaimed water, laboratory, industrial, landscaping, livestock, agriculture, greenhouses, drip irrigation, and more.


Features and Benefits
Easily flush sediment by simply opening purge valve
Sediment is visible through clear cover indicating need for flushing
Clear cover easily removed for total cleaning
No tools required (hand tighten only—using tools voids warranty)
Cleanable and reusable polyester or stainless steel filter screens


Ordering Information

Part Number Matrix:
UR(CS)–(MS)(SM)CR–F
(CS) Connection Size
34 = 3/4 inch FPT
1 = 1 inch Socket
15 = 1.5 inch Socket
2 = 2 inch Socket
(MS) Mesh Size
Polyester Screens:
24    100    1000
30    140
40    250
60    500
SS Screens:
30    100    200
60    140
(SM) Screen Material
Spin Down Filters:
none = Polyester
SS = Stainless Steel
Sediment Trapper Filters:
ST = Polyester
STSS = Stainless Steel
Examples:
UR34-100CR-F = Chemical Resistant Spin Down Filter with 3/4 inch FPT connections and 100 mesh polyester screen
UR1-60STSSCR-F = Chemical Resistant Sediment Trapper Filter with 1 inch socket connections and 60 mesh stainless steel screen


Mesh Selection
Mineral
in Water
Application Mesh
Size
Shale, shell General use 24
Debris General use 24, 30, 40
Pipe scale,
coarse sand
Sprinkler systems, faucet aerators, sand sensitive valves 40, 60
Fine sand,
grit from
new wells
Drip irrigation systems, faucet aerators, sand sensitive valves 100, 140
Poultry growers, watering devices 100
Fogger nozzles 140
Very fine
sand & grit
Pre-treatment 250, 500
Pre-treatment, ultra water systems, RO, etc. 1000
Algae Grows in presence of light under clear filter cover Use Sun Shield
NOTE: In general, use the coarsest screen deemed necessary to filter the material you want removed. This will result in longer runs between blow-downs.


Inline Centrifugal Sediment Filter Pressure Drop Curves

NOTE: These filters are specially designed for use in chemical applications with water temperatures up to 100°F.


Inline Centrifugal Sediment Filter Accessories
AUTOMATIC FLUSH VALVE (AFV)
Designed for use with SWT's Inline Centrifugal Sediment Filters when manual flushing is inconvenient, impractical, or undesirable. The AFV makes sediment filter maintenance easy and automatic. Simply attach the AFV to the centrifugal filter's purge valve, program a cycle time, and the filter will automatically flush at the selected time interval.
MOUNTING BRACKETS
U-shaped, stainless steel brackets.
REPLACEMENT SCREENS
Spin Down and Sediment Trapper screens available in polyester or stainless steel.
