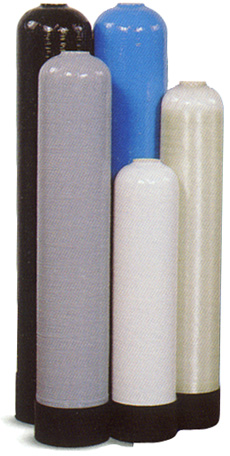

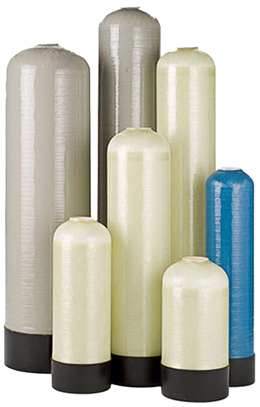

| These are the first tanks on the market to feature a 100% polypropylene (PP) copolymer inner lining for all wetted materials. This makes it the perfect tank for drinking water applications, D.I. exchange, laboratory, and applications where chemical resistance is required. Call to ask us about optional dome holes, bottom holes, or custom lengths. |
| |
 |
| FEATURES: |
| • |
Wound with continuous premium fiberglass to provide superior strength under pressure |
| • |
Custom formulated co-polymer polypropylene inner shell provides superior elasticity and impact resistance |
| • |
Extruded side wall produces consistent wall thickness and eliminates potential thin spots or stress points |
| • |
Base is injection molded from impact/temperature resistant polypropylene |
| • |
Certified to NSF/ANSI Standard 44 |
| • |
Available in natural, almond, blue, black, gray |
| • |
Made in the USA |
| • |
10 year warranty for tanks up to 13 inch in diameter;
5 year warranty for larger tanks |
|
| |
| OPERATING PARAMETERS: |
| • |
150 psi maximum operating pressure |
| • |
120ºF (50ºC) maximum operating temperature |
|
| |
| DESIGN PARAMETERS: |
| • |
250,000+ cycles, ambient and hot 150ºF (66ºC), 0 to 150 psi without leakage |
| • |
4:1 Safety Factor (600 psi minimum burst) |
| • |
Stress Rupture: 1000 hours minimum at 150ºF (66ºC) and 150 psi static pressure |
|
|
|
| |
| |
 |
Top Threads — High temperature/high pressure injection molding allows the glass-filled threaded inlet to be mechanically and chemically welded to the dome, eliminating potential leak paths. |
| |
|
 |
Poly Bases — DI Exchange vessels are available with a high impact and abuse resistant plastic Poly Base that offers superior rolling characteristics, reduced transportation weight compared to traditional rubber bases, reducing overall cost and shipping weight of the vessel, and design characteristics that will keep the base attached to the vessel. |
|
| |
| |
| Ordering Information |
|
Part Number Matrix: |
NE (TS) C (TO) (BO) (TC) (DH) (BS) |
|
(TS)Tank Size
4-digit number
EXAMPLES:
0714 = 7 x 14
1236 = 12 x 36 |
(TO) Top Opening
2 = 2.5"–8 NPSM
4 = 4.0"–8 UN
5 = 4.5"–8 BUTT |
(BO) Bottom Opening
0 = None
2 = 2.5"–8 NPSM
4 = 4.0"–8 UN
5 = 4.5"–8 BUTT |
|
(TC) Tank Color
A = Almond
B = Blue
G = Gray
K = Black
N = Natural |
(DH) Dome Hole
125D = 1.25" w/ Closure (for 10", 12", 13" tanks) |
(BS) Base Style (other than Standard)
E = Extended (for 7" thru 16" dia. tanks)
–SE = Super Extended (for 14", 16" dia. tanks)
–NB = No Base
–PB = Poly Base (for 8", 9", 10" dia. DI tanks)
–RB = Rubber-like Base (for 12", 14" dia. DI tanks) |
|
|
| EXAMPLES: |
| NE0714C20K is a 7 x 14 inch tank with 2.5"–8 NPSM top opening, black color, standard base. |
| NE0844C22BE is a 8 x 44 inch tank with 2.5"–8 NPSM top and bottom openings, blue color, extended base. |
| NE1022C22K-NB is a 10 x 22 inch tank with 2.5"–8 NPSM top and bottom openings, black color, no base. |
| NE1054C20N125D is a 10 x 54 inch tank with 2.5"–8 NPSM top opening, natural color, 1.25" NPSM dome hole with closure, standard base. |
|
| |
| |
| CALIFORNIA PROPOSITION 65 |
 |
WARNING: This product can expose you to chemicals including Sulfuric Acid which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. |
|
| |
| |
| 7 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE0714C20* |
7 x 14 |
2.5 |
Standard |
0.24 |
1.8 (6.8) |
14.6 (371) |
4 (1.8) |
50 |
| NE0724C20* |
7 x 24 |
2.5 |
Standard |
0.45 |
3.4 (12.9) |
23.6 (599) |
5 (2.3) |
24 |
| NE0730C20* |
7 x 30 |
2.5 |
Standard |
0.59 |
4.4 (16.7) |
30.4 (772) |
5 (2.3) |
24 |
| NE0735C20* |
7 x 35 |
2.5 |
Standard |
0.67 |
5.0 (18.9) |
34.9 (886) |
6 (2.7) |
24 |
| NE0744C20* |
7 x 44 |
2.5 |
Standard |
0.87 |
6.5 (24.6) |
44.2 (1123) |
7 (3.2) |
24 |
|
| |
| 8 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE0818C20* |
8 x 18 |
2.5 |
Standard |
0.43 |
3.2 (12.1) |
18.4 (467) |
5 (2.3) |
28 |
| NE0824C20* |
8 x 24 |
2.5 |
Standard |
0.57 |
4.3 (16.3) |
23.5 (597) |
5 (2.3) |
32 |
| NE0830C20* |
8 x 30 |
2.5 |
Standard |
0.76 |
5.7 (21.6) |
29.9 (759) |
6 (2.7) |
18 |
| NE0835C20* |
8 x 35 |
2.5 |
Standard |
0.88 |
6.6 (25.0) |
34.9 (886) |
7 (3.2) |
18 |
| NE0840C20* |
8 x 40 |
2.5 |
Standard |
1.02 |
7.6 (28.8) |
39.8 (1011) |
8 (3.6) |
18 |
| NE0844C20* |
8 x 44 |
2.5 |
Standard |
1.14 |
8.5 (32.2) |
44.2 (1123) |
8 (3.6) |
18 |
|
| IN STOCK ITEM: NE0844C22BE 8 x 44 tank with 2.5" top and bottom openings, blue color, extended base. |
| |
| 9 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE0918C20* |
9 x 18 |
2.5 |
Standard |
0.53 |
4.0 (15.1) |
18.4 (470) |
5 (2.3) |
28 |
| NE0935C20* |
9 x 35 |
2.5 |
Standard |
1.11 |
8.3 (31.4) |
34.8 (884) |
9 (4.1) |
18 |
| NE0940C20* |
9 x 40 |
2.5 |
Standard |
1.31 |
9.8 (37.1) |
40.3 (1024) |
9 (4.1) |
14 |
| NE0942C20* |
9 x 42 |
2.5 |
Standard |
1.38 |
10.3 (39.0) |
42.3 (1074) |
10 (4.5) |
16 |
| NE0948C20* |
9 x 48 |
2.5 |
Standard |
1.59 |
11.9 (45.0) |
48.3 (1227) |
11 (5.0) |
16 |
|
| |
| 10 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE1018C20* |
10 x 18 |
2.5 |
Standard |
0.64 |
4.8 (18.2) |
18.5 (470) |
6 (2.7) |
48 |
| NE1022C20* |
10 x 22 |
2.5 |
Standard |
0.79 |
5.9 (22.3) |
22.0 (559) |
7 (3.2) |
32 |
| NE1024C20* |
10 x 24 |
2.5 |
Standard |
0.88 |
6.6 (25.0) |
23.7 (602) |
7 (3.2) |
32 |
| NE1030C20* |
10 x 30 |
2.5 |
Standard |
1.15 |
8.6 (32.6) |
30.0 (762) |
9 (4.1) |
12 |
| NE1035C20* |
10 x 35 |
2.5 |
Standard |
1.38 |
10.3 (39.0) |
35.0 (889) |
10 (4.5) |
12 |
| NE1040C20* |
10 x 40 |
2.5 |
Standard |
1.62 |
12.1 (45.8) |
40.6 (1031) |
11 (5.0) |
12 |
| NE1044C20* |
10 x 44 |
2.5 |
Standard |
1.78 |
13.3 (50.3) |
44.3 (1125) |
12 (5.4) |
12 |
| NE1047C20* |
10 x 47 |
2.5 |
Standard |
1.90 |
14.2 (53.8) |
47.2 (1199) |
12 (5.4) |
14 |
| NE1054C20* |
10 x 54 |
2.5 |
Standard |
2.21 |
16.5 (62.5) |
54.4 (1382) |
14 (6.4) |
16** |
| NE1060C20* |
10 x 60 |
2.5 |
Standard |
2.50 |
18.7 (70.8) |
60.6 (1539) |
15 (6.8) |
1 |
| NE1065C20* |
10 x 65 |
2.5 |
Standard |
2.69 |
20.1 (76.1) |
65.1 (1654) |
16 (7.3) |
1 |
|
| IN STOCK ITEM: 1022C22K-NB 10 x 22 tank with 2.5" top and bottom openings, black color, no base. |
| IN STOCK ITEM: NE1054C20N125D 10 x 54 tank with 2.5" top opening, natural color, 1.25" dome hole, standard base. |
| |
| 12 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE1229C20* |
12 x 29 |
2.5 |
Standard |
1.62 |
12.1 (45.8) |
29.5 (749) |
11 (5.0) |
9 |
| NE1229C40* |
12 x 29 |
4.0† |
Standard |
1.62 |
12.1 (45.8) |
29.5 (749) |
11 (5.0) |
9 |
| NE1236C20* |
12 x 36 |
2.5 |
Standard |
2.02 |
15.1 (57.2) |
36.3 (922) |
13 (5.9) |
9 |
| NE1236C40* |
12 x 36 |
4.0† |
Standard |
2.02 |
15.1 (57.2) |
36.3 (922) |
13 (5.9) |
9 |
| NE1236C50* |
12 x 36 |
4.5†‡ |
Standard |
2.02 |
15.1 (57.2) |
36.3 (922) |
13 (5.9) |
9 |
| NE1242C20* |
12 x 42 |
2.5 |
Standard |
2.41 |
18.0 (68.1) |
42.4 (1077) |
15 (6.8) |
9 |
| NE1242C40* |
12 x 42 |
4.0† |
Standard |
2.41 |
18.0 (68.1) |
42.4 (1077) |
15 (6.8) |
9 |
| NE1242C50* |
12 x 42 |
4.5†‡ |
Standard |
2.41 |
18.0 (68.1) |
42.4 (1077) |
15 (6.8) |
9 |
| NE1244C20* |
12 x 44 |
2.5 |
Standard |
2.53 |
18.9 (71.6) |
44.5 (1130) |
15 (6.8) |
9 |
| NE1244C40* |
12 x 44 |
4.0† |
Standard |
2.53 |
18.9 (71.6) |
44.5 (1130) |
15 (6.8) |
9 |
| NE1248C20* |
12 x 48 |
2.5 |
Standard |
2.78 |
20.8 (78.7) |
48.5 (1232) |
16 (7.3) |
9 |
| NE1248C40* |
12 x 48 |
4.0† |
Standard |
2.78 |
20.8 (78.7) |
48.5 (1232) |
16 (7.3) |
9 |
| NE1252C20* |
12 x 52 |
2.5 |
Standard |
3.06 |
22.9 (86.6) |
52.8 (1341) |
17 (7.7) |
9** |
| NE1252C40* |
12 x 52 |
4.0† |
Standard |
3.06 |
22.9 (86.6) |
52.8 (1341) |
17 (7.7) |
9** |
| NE1252C50* |
12 x 52 |
4.5†‡ |
Standard |
3.06 |
22.9 (86.6) |
52.8 (1341) |
17 (7.7) |
9** |
|
| |
| 13 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE1330C20* |
13 x 30 |
2.5 |
Standard |
1.95 |
14.6 (55.3) |
30.0 (762) |
12 (5.4) |
12 |
| NE1335C20* |
13 x 35 |
2.5 |
Standard |
2.34 |
17.5 (66.2) |
35.1 (892) |
14 (6.4) |
12 |
| NE1344C20* |
13 x 44 |
2.5 |
Standard |
3.03 |
22.7 (85.9) |
44.4 (1128) |
18 (8.2) |
9 |
| NE1348C20* |
13 x 48 |
2.5 |
Standard |
3.33 |
24.9 (94.3) |
48.3 (1227) |
20 (9.1) |
9 |
| NE1354C20* |
13 x 54 |
2.5 |
Standard |
3.74 |
28.0 (106.0) |
54.3 (1379) |
22 (10.0) |
9** |
| NE1360C20* |
13 x 60 |
2.5 |
Standard |
4.24 |
31.7 (120.0) |
60.6 (1539) |
25 (11.4) |
1 |
| NE1365C20* |
13 x 65 |
2.5 |
Standard |
4.59 |
34.3 (129.8) |
65.1 (1654) |
26 (11.8) |
1 |
|
| IN STOCK ITEM: NE1365C22KE 13 x 65 tank with 2.5" top and bottom openings, black color, extended base. |
| |
| 14 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE1430C20* |
14 x 30 |
2.5 |
Standard |
2.15 |
16.1 (60.8) |
30.1 (765) |
15 (6.8) |
10 |
| NE1430C40* |
14 x 30 |
4.0† |
Standard |
2.15 |
16.1 (60.8) |
30.1 (765) |
15 (6.8) |
10 |
| NE1447C50* |
14 x 47 |
4.5†‡ |
Standard |
3.65 |
27.3 (103.5) |
47.9 (1216) |
23 (10.5) |
8 |
| NE1454C20* |
14 x 54 |
2.5 |
Standard |
4.17 |
31.2 (118.1) |
54.1 (1375) |
25 (11.4) |
8** |
| NE1454C40* |
14 x 54 |
4.0† |
Standard |
4.17 |
31.2 (118.1) |
54.1 (1375) |
25 (11.4) |
8** |
| NE1465C20* |
14 x 65 |
2.5 |
Standard |
5.10 |
38.1 (144.3) |
65.1 (1654) |
29 (13.2) |
1 |
| NE1465C40* |
14 x 65 |
4.0† |
Standard |
5.10 |
38.1 (144.3) |
65.1 (1654) |
29 (13.2) |
1 |
| NE1465C50* |
14 x 65 |
4.5†‡ |
Standard |
5.10 |
38.1 (144.3) |
65.1 (1654) |
29 (13.2) |
1 |
| NE1472C20* |
14 x 72 |
2.5 |
Standard |
5.69 |
42.6 (161.3) |
72.1 (1832) |
32 (14.5) |
1 |
| NE1472C40* |
14 x 72 |
4.0† |
Standard |
5.69 |
42.6 (161.3) |
72.1 (1832) |
32 (14.5) |
1 |
|
| |
| 16 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE1623C20* |
16 x 23 |
2.5 |
Standard |
2.06 |
15.4 (58.3) |
23.1 (587) |
17 (7.7) |
1 |
| NE1628C20* |
16 x 28 |
2.5 |
Standard |
2.61 |
19.5 (73.8) |
28.0 (711) |
19 (8.6) |
1 |
| NE1636C20* |
16 x 36 |
2.5 |
Standard |
3.62 |
27.1 (102.6) |
36.5 (927) |
21 (9.5) |
1 |
| NE1636C40* |
16 x 36 |
4.0† |
Standard |
3.62 |
27.1 (102.6) |
36.5 (927) |
21 (9.5) |
1 |
| NE1644C20* |
16 x 44 |
2.5 |
Standard |
4.53 |
33.9 (128.3) |
44.2 (1124) |
25 (11.4) |
1 |
| NE1644C40* |
16 x 44 |
4.0† |
Standard |
4.53 |
33.9 (128.3) |
44.2 (1124) |
25 (11.4) |
1 |
| NE1653C20* |
16 x 53 |
2.5 |
Standard |
5.57 |
41.7 (157.9) |
53.3 (1353) |
30 (13.6) |
1 |
| NE1653C40* |
16 x 53 |
4.0† |
Standard |
5.57 |
41.7 (157.9) |
53.3 (1353) |
30 (13.6) |
1 |
| NE1665C20* |
16 x 65 |
2.5 |
Standard |
6.91 |
51.7 (195.7) |
64.7 (1643) |
33 (15.0) |
1 |
| NE1665C40* |
16 x 65 |
4.0† |
Standard |
6.91 |
51.7 (195.7) |
64.7 (1643) |
33 (15.0) |
1 |
|
| |
| 21 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE2162C40* |
21 x 62 |
4.0 SS |
Standard |
11.23 |
84.0 (318.0) |
67.0 (1702) |
101 (45.8) |
1 |
|
| |
| 24 INCH DIAMETER TANKS |
Part
Number |
Tank
Size
Inches |
Top
Opening
Inches |
Base
Style |
Capacity |
Height
with Base
inch (mm) |
Tank
Net Wt.
Lbs. (kg) |
Carton
Qty |
| Cu. Ft. |
Gallon
(Liter) |
| NE2472C40* |
24 x 72 |
4.0 SS |
Standard |
15.37 |
115.0 (435.3) |
73.1 (1857) |
125 (56.7) |
1 |
|
| |
* Specify color: 'A'=Almond; 'B'=Blue; 'G'=Gray; 'K'=Black; 'N'=Natural. If not specified, SWT will supply Black.
** Tanks 50 inch or taller with extended base require single carton for shipment.
† Top opening with machined threads.
‡ Buttress with rubber bumper. |
| |
Extended Base Option: Available for 7 to 16 inch diameter tanks.
Super-Extended Base Option: Available for 14 and 16 inch diameter tanks.
Poly Base for DI Exchange Tanks Option: Available for 8, 9, and 10 inch diameter tanks.
Rubber-Like Base for DI Exchange Tanks Option: Available for 12, and 14 inch diameter tanks.
Bottom Opening Option: 2.5"–8 NPSM for 7 to 16 inch diameter tanks; 4"–8 UN for 12, 14, and 16 inch diameter tanks.
Dome Hole Option: 1.25 inch with closure for 10, 12, and 13 inch diameter tanks. Dome hole option NOT available for 12 inch diameter tanks with 4"–8 UN inlet.
Side Openings Not Available.
Bumper Band Option: Available for 7 to 14 inch diameter tanks. |
| |
TANK WARRANTY:
Residential polypropylene-lined pressure vessels (up to 13 inch diameter) are warranted to be free of manufacturing and material defects for a period of 10 years if operated within specifications in residential water treatment applications. Commercial and industrial sizes (greater than 13 inch diameter) are warranted for a period of 5 years. Warranty coverage excludes freezing, vacuum, corrosive materials exposure.
These vessels are only approved for H2O pressure use. All other uses or solutions to be used must be approved by manufacturer.
These vessels are not to be used for pneumatic or hydro-pneumatic applications. |
| |
| |
| VACUUM PROTECTION & FLEX CONNECTORS |
Fiberglass/composite pressure vessels are rated for an internal negative pressure of 5-inches Hg (17 Pa) vacuum below atmospheric. If negative pressure could ever exceed 5-inches Hg (17 Pa), an adequate vacuum breaker must be installed between the pressure vessel inlet and any valves (see illustration right). For enclosed tank applications, the vacuum breaker should be installed at the highest location in the system plumbing.
System connections to the pressure vessel must accomodate vertical expansion between side, top, and bottom openings. Either flexibility in piping or flex connectors, as shown here, are recommended. |
|
See SWT Vacuum Protection
and Flex Connector Products |
|
| |
