Ultraviolet Systems
swtwater.com UVCR Series
Commercial UV Systems
SWT’s Commercial Ultraviolet Water Disinfection Equipment offers greater flexibility for all of your UV applications. With smaller space requirements and remote electrical boxes, these units are easier to install than any of our competitors' units. Plus, the UVCR Series offers a wide range of options to satisfy your individual application needs — from the economically simple to the most demanding of installations.

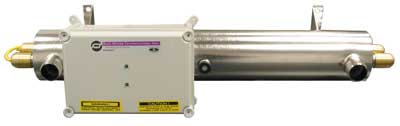

SWT UVCR Series Commercial UV System

Standard UVCR units feature 254 nm wavelength dosing.
Optional 185 nm wavelength systems are also available.

Standard Features
• 304 electropolished stainless UV chamber
• Closed vessel design to minimize seals and chances for potential leaks
• Remote electrical enclosure
• Low pressure ultraviolet lamp with standard 4-pin connections
• UV dosage of 30 µw/cm² @ 254nm
• 9000 hour lamp life (approx. 1 year)
• All international voltages available

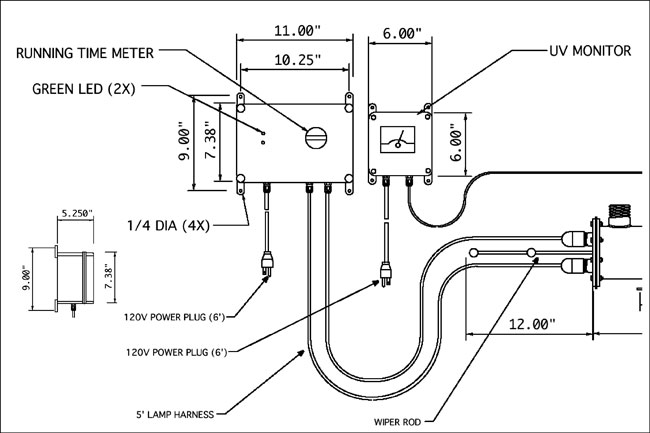

SWT UVCR Schematic


UVCR Series Ultraviolet Systems
Part Number In/out
NPT Size
Inches		 Flow Rate Number of
Lamps		 Shipping
Dimensions
(L x W x H)
Inches		 Shipping
Weight
Lbs. (Kg.)
Clear,
Fresh
Water		 DI, RO
Water		 Waste
Water
UVCR-1S 1 15 GPM 18 GPM 10 GPM 1 39 x 9 x 9 26 (10)
UVCR-1SHO 1 20 GPM 24 GPM 12 GPM 1 (High Output) 39 x 9 x 9 26 (10)
UVCR-2S 1.5 30 GPM 35 GPM 20 GPM 2 39 x 9 x 9 28 (11)
UVCR-2SHO-1.5 1.5 50 GPM 60 GPM 30 GPM 2 (High Output) 43 x 16 x 16 36 (14)
UVCR-2SHO-2 2 50 GPM 60 GPM 30 GPM 2 (High Output) 43 x 16 x 16 45 (17)
Optional manual or automatic wiping mechanisms are available. See Options below for details.
Standard systems designed for 120V/60 Hz/1-Phase applications. Optional international voltages available.


UVCR Series Optional Features

ULTAVIOLET MONITORS
—  Ultraviolet Monitor with 0 to 100% Display
(P/N UVCR-NBUM)
—  Ultraviolet Monitor with 0 to 100% Display and Audible Alarm
(P/N UVCR-NBUM-AA)

ELAPSED RUNNING TIME METER
—  Elapsed Running Time Meter
(P/N UVCR-ERTM)

MANUAL WIPER SYSTEMS
—  Manual Wiper System for 1 Lamp Unit
(P/N UVCR-MWS1)
—  Manual Wiper System for 2 Lamp Unit
(P/N UVCR-MWS2)

REMOVABLE HEAD DESIGN
—  Removable Head Design, One End
(P/N UVCR-RHD)

UVCR Series Replacement Parts

UV LAMPS
—  UV Lamp for UVCR-1S, UVCR-2S
(P/N IL-UVCR-LP)
—  UV Lamp for UVCR-1SHO, UVCR-2SHO-1.5, UVCR-2SHO-2
(P/N IL-UVCR-LPHO)

QUARTZ SLEEVE
—  Quartz Sleeve for all UVCR Systems
(P/N IL-UVCR-QTZ)

O-RING
—  O-ring for all UVCR Systems — requires 2 per system
(P/N IL-213E)
