Underdrain Assemblies
swtwater.com Water’s Edge™
Distribution System Kits for Top Mount Control Valves
  COMPONENTS INDEX  |  MORE WATER'S EDGE  |  DOWNLOAD PDF
Water’s Edge™ Distributor System Kits are custom tailored to meet your specific application needs. Our design engineering expertise and more than 30 years experience ensure that you get the best distribution solution available.

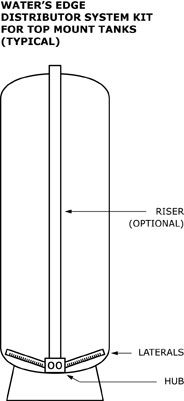

SWT Distributor System Kit for Tanks with Top Mount Control Valves
SWT’s Water’s Edge Distributor System Kits for Top Mount Tanks are fabricated from non-corrosive FDA and NSF approved materials for use in softeners, deionizers, carbon filters, sediment filters, iron filters, and multimedia filters. They are designed for all top mount control valves with a 1.5 inch center riser port.

Water’s Edge Distributor Systems are extra strong and durable for use with heavy filtration medias (gravel, sand, garnet) and can be used with a variety of regenerants including salt, caustics, acids, chlorine, etc. The collection screens (laterals) have 0.010 standard slotting for use with 50 mesh filter media or larger. They are designed to spread flow evenly across the filter bed to eliminate dead zones and to provide proper and even lift and separation during backwash.

Technical Specifications
Max. Recommended Operating Temperature: 140°F (60°C)
Max Recommended Operating Pressure: 150 psi
ΔP @ 5 ft./sec. Velocity: ≤ 3 psi
Materials (Standard): PVC, EPDM
Materials (Available): CPVC, Polypropylene, PVDF, HDPE, etc.
Slot Width (Standard): 0.010 inch (0.254 mm)
Slot Width (Available): 0.008, 0.012, 0.016, 0.020, 0.032, 0.125 inch


Water’s Edge DS Kits for Top Opening Tanks — Common Assemblies
MODEL
NUMBER		 TANK DIAMETER
INCHES		 CENTER PIPE SIZE
INCHES		 LATERALS
NUMBER (SIZE)
SM-H141572 14 1.5 x 72 8 (3/4 inch)
SM-H161572 16 1.5 x 72 8 (3/4 inch)
SM-H181572 18 1.5 x 72 8 (3/4 inch)
SM-H211572 21 1.5 x 72 8 (3/4 inch)
SM-H241572 24 1.5 x 72 8 (3/4 inch)
SM-H301572 30 1.5 x 72 8 (3/4 inch)
SM-H361572 36 1.5 x 72 8 (3/4 inch)

Custom sizes, configurations, and materials are our specialty. Contact SWT with your requirements.
