swtwater.com RO Booster & Delivery Pumps
SWT Residential Booster Pumps are the quiet ones. Special padding and mounting ensures quite operation for these reliable workhorses. For countries with low water pressure, or to optimize the performance and output of membranes in any residential RO system, these booster pumps will get the job done. Certified to NSF Standard 58.
SWT Booster Pumps CDP8800 and CDP6800
CDP8800
For use with
membranes rated
50 to 100 gpd
CDP6800
For use with
membranes rated
9 to 50 gpd
CDP6800, CDP8800 Features
Toughest, most durable pump on the market
Adjustable maximum outlet psi (regardless of feed pressure)
Expels trapped air (no more air locks)
Can be mounted with pump head up or down
More flow at extremely low inlet pressures
New motor venting system to remove moisture
EMI/RFI electronic noise suppression
100% final performance tested
One Year Limited Warranty

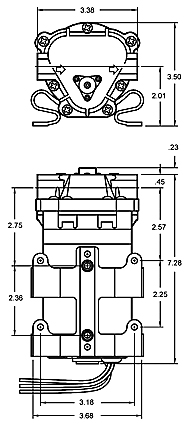

SWT CDP6800 Booster Pump Dimensions
SERIES 6800 SPECIFICATIONS
Part Number CDP6800
Motor Type 24 VAC
permanent magnet
totally enclosed
non-ventilated
Motor Leads 20 AWG, 6 inch length
Motor Temperature Limits 150ºF (66ºC) maximum
Pump Design 3 chamber diaphragm pump
self priming
capable of being run dry
Pump Certifications NSF Standard 58
Materials:
  Housings
  Valves
  Diaphragm
  Fasteners

Nylon
EPDM
Santoprene
Stainless Steel
Approximate Weight 4.6 lb. (2.1 kg)
Maximum Liquid Temperature 170ºF (77ºC)
Maximum Pump Pressure 120 psi (827 kPa)
Maximum Inlet Pressure 40 psi (275 kPa)
Membrane GPD 9 to 50
Operating Hours (Estimated) 30,000 minimum
Self Priming Lift 60 inches
Noise Level 45 dBA maximum
Fittings:
  1/4 inch Compression (Straight)
  1/4 inch Compression (Elbow)
  1/4 inch Stem (Straight)
Connects to:
  1/4 inch Tubing
  1/4 inch Tubing
  1/4 inch John Guest Push-on Fitting
Mounting Plate Flex Mount (See below for other options)
SWT CDP8800 Booster Pump Dimensions
SERIES 8800 SPECIFICATIONS
Part Number CDP8800
Motor Type 24 VAC
permanent magnet
totally enclosed
non-ventilated
Motor Leads 20 AWG, 6 inch length
Motor Temperature Limits 150ºF (66ºC) maximum
Pump Design 3 chamber diaphragm pump
self priming
capable of being run dry
Pump Certifications NSF Standard 58
Materials:
  Housings
  Valves
  Diaphragm
  Fasteners

Nylon
EPDM
Santoprene
Stainless Steel
Approximate Weight 6.2 lb. (2.8 kg)
Maximum Liquid Temperature 170ºF (77ºC)
Maximum Pump Pressure 120 psi (827 kPa)
Maximum Inlet Pressure 40 psi (275 kPa)
Membrane GPD 50 to 100
Operating Hours (Estimated) 15,000 minimum
Self Priming Lift 60 inches
Noise Level 52 dBA maximum
Fittings:
  3/8 inch Compression (Straight)
  3/8 inch Compression (Elbow)
  3/8 inch Stem (Straight)
Connects to:
  3/8 inch Tubing
  3/8 inch Tubing
  3/8 inch John Guest Push-on Fitting
Mounting Plate Steel Mount (See below for other options)

Accessories

TRANSFORMERS
—  6800 SERRIES — 100 VAC, 120 VAC, 230 VAC available
8800 SERRIES — 100 VAC, 120 VAC, 230 VAC available

TANK PRESSURE SWITCHES (PSW)
—  6800 SERRIES — 1/4 inch John Guest — 40 PSI, 60 PSI, 80 PSI available
8800 SERRIES — 3/8 inch John Guest — 40 PSI, 60 PSI, 80 PSI available

Mounting Plate Options
SWT Booster Pump Flex Mount SWT Booster Pump Steel Mount SWT Booster Pump Aluminum Mount SWT Booster Pump Universal Mount SWT Booster Pump Tee Mount
FLEX MOUNT
Standard on 6800
STEEL MOUNT
Standard on 8800
ALUMINUM MOUNT UNIVERSAL MOUNT TEE MOUNT
