Storage Tanks
swtwater.com Rotationally Molded
Brine & Chemical Storage Tanks
  COMPONENTS INDEX  |  DOWNLOAD PDF

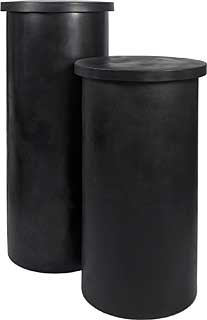

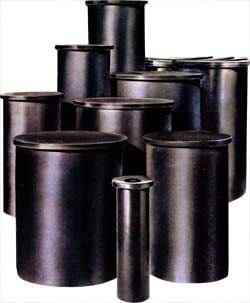

SWT's Rotationally Molded Brine and Chemical Storage Tanks
Rotationally Molded Brine and Storage Tanks are very durable, non-toxic, and resistant to ultraviolet light. They are available in capacities ranging from 95 to 500 gallons, with sizes ranging from 24 to 50 inches in diameter. All tanks and covers are black.

FEATURES:
• Made of one piece, rigid, high impact, non-toxic polyethylene
• High chemical resistance
• Ultraviolet inhibitors
• 1/4 inch seamless walls won’t bulge
• Complies with Federal Food, Drug, and Cosmetic Act Section 121.2501 dated February 19, 1966

BRINE & CHEMICAL STORAGE TANKS
Part Number Description Diameter
Inch (cm)		 Height
Inch (cm)		 Capacity
Gal. (liter)		 Salt Capacity
Lbs (kg)		 Weight
Lb. (kg)
LC-BT2448 24 x 48, Cylindrical 24 (61) 48 (121.9) 95 (360) 800 (363) 30 (13)
LC-BT2460 24 x 60, Cylindrical 24 (61) 60 (152.4) 115 (435) 1000 (454) 32 (14)
LC-BT3048 30 x 48, Cylindrical 30 (76.2) 48 (121.9) 145 (549) 1200 (544) 48 (21)
LC-BT3060 30 x 60, Cylindrical 30 (76.2) 60 (152.4) 180 (681) 1600 (725) 56 (25)
LC-BT3948 39 x 48, Cylindrical 39 (99.1) 48 (121.9) 250 (946) 2200 (998) 67 (30)
LC-BT3960 39 x 60, Cylindrical 39 (99.1) 60 (152.4) 300 (1135) 2700 (1225) 80 (36)
LC-BT4260 42 x 60, Cylindrical 42 (106.7) 60 (152.4) 350 (1325) 3100 (1406) 84 (38)
LC-BT5060 50 x 60, Cylindrical 50 (127) 60 (152.4) 500 (1893) 4500 (2041) 107 (48)

ACCESSORIES:

PART NUMBER DESCRIPTION
LC-H1080 Plastic Grid Plate, 24 inch diameter
LC-H1032 Plastic Grid Plate, 30 inch diameter
