Custom Fabricated Headers For Steel Tanks

COMPONENTS INDEX | MORE WATER'S EDGE | DOWNLOAD PDF

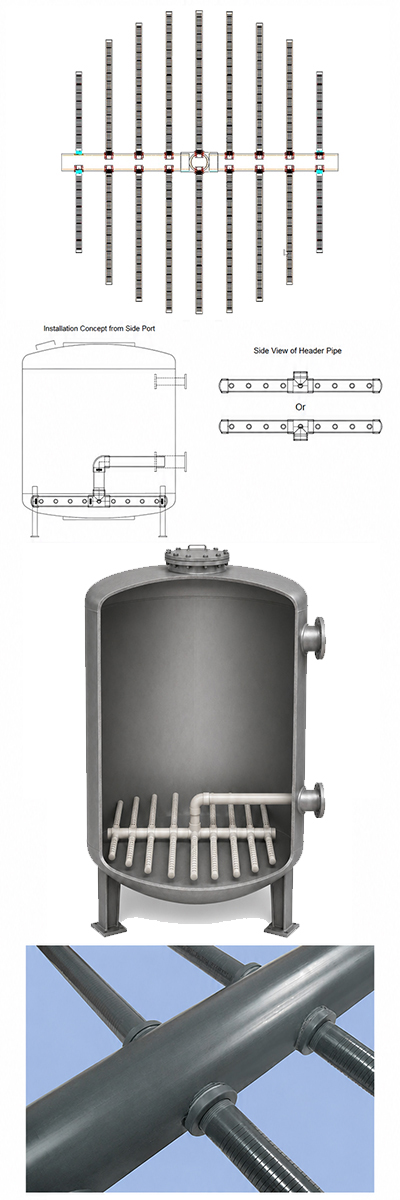

SWT Water's Edge Header Assembly with 3-inch Pipe

SWT Water's Edge Header Assembly with 6-inch Pipe

Water’s Edge Headers are custom made to your application needs. Our design engineering expertise and more than 30 years experience ensure that you get the best bottom drain solution available.

SWT Water’s Edge™ Header Systems are fabricated from non-corrosive FDA and NSF approved materials. For use in softeners, carbon filters, multimedia filters, and waste water applications, they are available for tanks from 48 to 120 inches in diameter and are optimized for your application — whether you need 3.5 or 20 gpm/sq.ft. Water’s Edge Header Systems are available in a variety of materials and resistant to brine, acids, caustics, oxidizing agents, and chlorine. They are designed to spread flow evenly across the filter bed to eliminate dead zones and to provide proper and even lift and separation during backwash.

Technical Specifications

Max. Recommended Operating Temperature: 140°F (60°C)

Max Recommended Operating Pressure: 150 psi

ΔP @ 5 ft./sec. Velocity: ≤ 3 psi

Materials (Standard): PVC, Buna-N

Materials (Available): CPVC, PP, PVDF, HDPE, etc.

Slot Width (Standard): 0.010 inch (0.254 mm)

Slot Width (Available): 0.008, 0.012, 0.016, 0.020, 0.032, 0.125 inch, and larger

Features and Benefits
•	Fabricated from non-corrosive FDA and NSF approved materials
•	Flow rates up to 500 gpm available
•	Flow patterns from 3.5 to 20 gpm/sq.ft.
•	Resistant to brine, acid, caustics, chlorine, chloramine, bacteria, oxidation
•	For use in softeners, iron filters, waste water, GAC filters, dealkalizers
•	Available for tanks from 4 to 10 ft. diameter
•	Customizing available
•	Designed to spread flow evenly across the filter bed to eliminate dead zones
•	Provides proper and even lift and separation during backwash
•	Available in a variety of materials

Water’s Edge Header Systems — Common Assemblies

MODEL NUMBER	TANK DIAMETER INCHES	PIPE SIZE INCHES
SM-HS483	48	3
SM-HS543	54	3
SM-HS544	54	4
SM-HS603	60	3
SM-HS604	60	4
SM-HS663	66	3
SM-HS664	66	4
SM-HS724	72	4
SM-HS726	72	6
SM-HS844	84	4
SM-HS846	84	6
SM-HS964	96	4
SM-HS966	96	6
SM-HS1084	108	4
SM-HS1086	108	6
SM-HS1204	120	4
SM-HS1206	120	6

Custom sizes, configurations, and materials are our specialty. Contact SWT with your requirements.
