Control Valves
SWT logo Commercial DI Control Valves

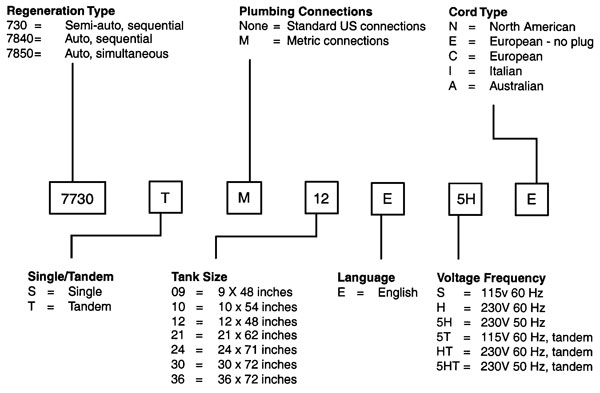

Model Number Matrix 7800 Series Single Systems
730 Series Deionizer Controls 7800 Series Tandem Systems
7700 Series Single Systems Options
7700 Series Tandem Systems Flow Controls


Back to top
730 Series Deionizer Controls, 115V/60Hz
Semi-Automatic 3/4 inch Seperate Bed Deionizer Control, Top Mount, North American Cord and Plug
Part
Number		 Model
Number 		Tank Size
Inches		 Service Flow Rate
GPM (M3/H)
UA/1051300 730-09-ESN 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051301 730-10-ESN 10 x 54 3.0 (0.7) to 4.0 (0.9)
UA/1051302 730-12-ESN 12 x 48 4.0 (0.9) to 6.0 (1.4)
Backwash flow controls are supplied. Cation backwash flow controls are based on 4.5 gpm/sq.ft. (11 m³/h/m²).
Anion backwash flow controls are based on 3.5 gpm/sq.ft. (8.6 m³/h/m²). Other backwash flow controls available upon request.

730 Series Deionizer Controls, 230V/50Hz
Semi-Automatic 3/4 inch Seperate Bed Deionizer Control, Top Mount, European Cord, No Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051304 730-10-E5HE 10 x 54 3.0 (0.7) to 4.0 (0.9)
UA/1051305 730-12-E5HE 12 x 48 4.0 (0.9) to 6.0 (1.4)
Backwash flow controls are supplied. Cation backwash flow controls are based on 4.5 gpm/sq.ft. (11 m³/h/m²).
Anion backwash flow controls are based on 3.5 gpm/sq.ft. (8.6 m³/h/m²). Other backwash flow controls available upon request.

Back to top
7700 Series Single Systems, 115V/60Hz
Automatic 1 inch Seperate Bed Deionizer Control, Top Mount, North American Cord and Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051306 7710S-09-ESN 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051307 7710S-13-ESN 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051308 7710S-14-ESN 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051309 7720S-09-ESN 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051310 7720S-13-ESN 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051311 7720S-14-ESN 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051312 7750S-14-ESN 14 x 65 10 (2.3) to 12.7 (2.7)
UA/1051313 7760S-14-ESN 14 x 65 10 (2.3) to 12.7 (2.7)
Backwash flow controls are supplied. Cation backwash flow controls are based on 4.5 gpm/sq.ft. (11 m³/h/m²).
Anion backwash flow controls are based on 3.5 gpm/sq.ft. (8.6 m³/h/m²). Other backwash flow controls available upon request.

7700 Series Single Systems, 230V/50Hz
Automatic 1 inch Seperate Bed Deionizer Control, Top Mount, European Cord, No Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051314 7710S-09-E5HE 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051315 7710S-13-E5HE 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051316 7710S-14-E5HE 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051317 7720S-09-E5HE 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051318 7720S-13-E5HE 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051319 7720S-14-E5HE 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051320 7750S-14-E5HE 14 x 65 10 (2.3) to 12.7 (2.7)
UA/1051321 7760S-14-E5HE 14 x 65 10 (2.3) to 12.7 (2.7)
Backwash flow controls are supplied. Cation backwash flow controls are based on 4.5 gpm/sq.ft. (11 m³/h/m²).
Anion backwash flow controls are based on 3.5 gpm/sq.ft. (8.6 m³/h/m²). Other backwash flow controls available upon request.

Back to top
7700 Series Tandem Systems, 115V/60Hz
Automatic 1 inch Seperate Bed Deionizer Control, Tandem System, North American Cord and Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051322 7710S-09-ESTN 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051323 7710S-13-ESTN 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051324 7710S-14-ESTN 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051325 7720S-09-ESTN 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051326 7720S-13-ESTN 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051327 7720S-14-ESTN 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051328 7750S-14-ESTN 14 x 65 10 (2.3) to 12.7 (2.7)
UA/1051329 7760S-14-ESTN 14 x 65 10 (2.3) to 12.7 (2.7)
Backwash flow controls are supplied. Cation backwash flow controls are based on 4.5 gpm/sq.ft. (11 m³/h/m²).
Anion backwash flow controls are based on 3.5 gpm/sq.ft. (8.6 m³/h/m²). Other backwash flow controls available upon request.

7700 Series Tandem Systems, 230V/50Hz
Automatic 1 inch Seperate Bed Deionizer Control, Tandem System, European Cord, No Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051330 7710T-09-E5HTE 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051331 7710T-13-E5HTE 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051332 7710T-14-E5HTE 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051333 7720T-09-E5HTE 9 x 48 2.0 (0.4) to 3.0 (0.7)
UA/1051334 7720T-13-E5HTE 13 x 54 4.0 (0.9) to 6.0 (1.4)
UA/1051335 7720T-14-E5HTE 14 x 65 7.0 (1.6) to 10 (2.3)
UA/1051336 7750T-14-E5HTE 14 x 65 10 (2.3) to 12.7 (2.7)
UA/1051337 7760T-14-E5HTE 14 x 65 10 (2.3) to 12.7 (2.7)
Backwash flow controls are supplied. Cation backwash flow controls are based on 4.5 gpm/sq.ft. (11 m³/h/m²).
Anion backwash flow controls are based on 3.5 gpm/sq.ft. (8.6 m³/h/m²). Other backwash flow controls available upon request.

Back to top
7800 Series Single Systems, 115V/60Hz
Automatic 2 inch Seperate Bed Deionizer Control,  Side Mount, North American Cord and Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051338 7840S-21-ESN 21 x 62 10 (2.3) to 15 (3.4)
UA/1051339 7840S-24-ESN 24 x 71 20 (4.5) to 30 (6.8)
UA/1051340 7840S-30-ESN 30 x 72 30 (6.8) to 45 (10.2)
UA/1051341 7840S-36-ESN 36 x 72 40 (9.1) to 75 (17.0)
UA/1051342 7850S-21-ESN 21 x 62 10 (2.3) to 15 (3.4)
UA/1051343 7850S-24-ESN 24 x 71 20 (4.5) to 30 (6.8)
UA/1051344 7850S-30-ESN 30 x 72 30 (6.8) to 45 (10.2)
UA/1051345 7850S-36-ESN 36 x 72 40 (9.1) to 75 (17.0)
Backwash flow controls are not included.
Tank internals (top diffuser, hub and laterals) included.

7800 Series Single Systems, 230V/50Hz
Automatic 2 inch Seperate Bed Deionizer Control,Side Mount, North American Cord and Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051346 7840S-21-E5HE 21 x 62 10 (2.3) to 15 (3.4)
UA/1051347 7840S-24-E5HE 24 x 71 20 (4.5) to 30 (6.8)
UA/1051348 7840S-30-E5HE 30 x 72 30 (6.8) to 45 (10.2)
UA/1051349 7840S-36-E5HE 36 x 72 40 (9.1) to 75 (17.0)
UA/1051350 7850S-21-E5HE 21 x 62 10 (2.3) to 15 (3.4)
UA/1051351 7850S-24-E5HE 24 x 71 20 (4.5) to 30 (6.8)
UA/1051352 7850S-30-E5HE 30 x 72 30 (6.8) to 45 (10.2)
UA/1051353 7850S-36-E5HE 36 x 72 40 (9.1) to 75 (17.0)
Backwash flow controls are not included.
Tank internals (top diffuser, hub and laterals) included.

Back to top
7800 Series Tandem Systems, 115V/60Hz
Automatic 2 inch Seperate Bed Deionizer Control,  Side Mount, North American Cord and Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051354 7840T-21-ESTN 21 x 62 10 (2.3) to 15 (3.4)
UA/1051355 7840T-24-ESTN 24 x 71 20 (4.5) to 30 (6.8)
UA/1051356 7840T-30-ESTN 30 x 72 30 (6.8) to 45 (10.2)
UA/1051357 7840T-36-ESTN 36 x 72 40 (9.1) to 75 (17.0)
UA/1051358 7850T-21-ESTN 21 x 62 10 (2.3) to 15 (3.4)
UA/1051359 7850T-24-ESTN 24 x 71 20 (4.5) to 30 (6.8)
UA/1051360 7850T-30-ESTN 30 x 72 30 (6.8) to 45 (10.2)
UA/1051361 7850T-36-ESTN 36 x 72 40 (9.1) to 75 (17.0)
Backwash flow controls are not included.
Tank internals (top diffuser, hub and laterals) included.

7800 Series Tandem Systems, 230V/50Hz
Automatic 2 inch Seperate Bed Deionizer Control,Side Mount,European Cord, No Plug
Part
Number 		Model
Number 		Tank Size
Inches 		Service Flow Rate
GPM (M3/H)
UA/1051362 7840T-21-E5HTE 21 x 62 10 (2.3) to 15 (3.4)
UA/1051363 7840T-24-E5HTE 24 x 71 20 (4.5) to 30 (6.8)
UA/1051364 7840T-30-E5HTE 30 x 72 30 (6.8) to 45 (10.2)
UA/1051365 7840T-36-E5HTE 36 x 72 40 (9.1) to 75 (17.0)
UA/1051366 7850T-21-E5HTE 21 x 62 10 (2.3) to 15 (3.4)
UA/1051367 7850T-24-E5HTE 24 x 71 20 (4.5) to 30 (6.8)
UA/1051368 7850T-30-E5HTE 30 x 72 30 (6.8) to 45 (10.2)
UA/1051369 7850T-36-E5HTE 36 x 72 40 (9.1) to 75 (17.0)
Backwash flow controls are not included.
Tank internals (top diffuser, hub and laterals) included.

Back to top
General Options
Option Code
Description
E
 European Cord, No Plug
A
 Australian Cord
I
 Italian Cord
C
 European Cord
5H
 230 Volt, 50 Hz
H
 230 Volt, 60 Hz
5HT
 230 Volt, 50 Hz, Tandem
HT
 230 Volt, 60 Hz, Tandem

730 Series Options
Option Code
Description
80
 0 to 80 Micro-Ohm Meter Option

7700 Series Options
Option Code
Description
P772
 Polisher Control Valve
7EC
 Extended Cable Option for Tandem Systems Only
7RI
 Remote Interface Kit

7800 Series Options
Option Code
Description
P785
 Polisher Control Valve
8EC
 Extended Cable Option for Tandem Systems Only
7RI
 Remote Interface Kit

Back to top
730 Series Flow Controls
Part Number
Description
UA-1033435 Backwash Flow Control, 6 inch Tank, 1.0 gpm
UA-1033436 Backwash Flow Control, 7 inch Tank, 1.5 gpm
UA-1033437 Backwash Flow Control, 8 inch Tank, 1.7 gpm
UA-1033438 Backwash Flow Control, 9 inch Tank, 2.2 gpm
UA-1033439 Backwash Flow Control, 10 inch Tank, 2.7 gpm
UA-1033440 Backwash Flow Control, 12 inch Tank, 3.9 gpm

7700 Series Flow Controls
Part Number
Description
UA-1033435 Backwash Flow Control, 6 inch Tank, 1.0 gpm
UA-1033436 Backwash Flow Control, 7 inch Tank, 1.5 gpm
UA-1033437 Backwash Flow Control, 8 inch Tank, 1.7 gpm
UA-1033438 Backwash Flow Control, 9 inch Tank, 2.2 gpm
UA-1033439 Backwash Flow Control, 10 inch Tank, 2.7 gpm
UA-1033440 Backwash Flow Control, 12 inch Tank, 3.9 gpm
UA-1002847 Flow Control, 3/4 inch NPT, 3 gpm
UA-1002848 Flow Control, 3/4 inch NPT, 4 gpm
UA-1002832 Flow Control, 1 inch NPT, 5 gpm
UA-1002849 Flow Control, 1 inch NPT, 6 gpm

UA-1002850

 Flow Control, 1 inch NPT, 7 gpm
UA-1002851 Flow Control, 1 inch NPT, 8 gpm
UA-1002833 Flow Control, 1 inch NPT, 10 gpm

7800 Series Flow Controls
Part Number
Description
UA-1002833 Flow Control, 1 inch NPT, 10 gpm
UA-1002835 Flow Control, 1.5 inch NPT, 10 gpm
UA-1002834 Flow Control, 1.5 inch NPT, 15 gpm
UA-1002836 Flow Control, 1.5 inch NPT, 20 gpm
UA-1002840 Flow Control, 1.5 inch NPT, 25 gpm
UA-1002837 Flow Control, 1.5 inch NPT, 30 gpm
UA-1002838 Flow Control, 2 inch NPT, 40 gpm
UA-1002839 Flow Control, 2 inch NPT, 50 gpm

Back to top
