SWT PTFE Absolute Filter Cartridges

Absolute Cartridges

0.2 Micron PTFE Filter Cartridges

SWT's PTFE Pharmaceutical Liquid Bacterial Retentive (LBR) cartridge is validated to produce sterility through retention of Brevundimonas diminuta per HIMA guidelines. PTFE exhibits high air and liquid flow rates as well as being a sterilizing grade filter that uses an expanded PTFE membrane. Users expecting the ultimate flow rate performance for liquid or air sterilization will find the SWT PTFE filter cartridge to be their preferred choice.

SWT PTFE filter cartridges are manufactured utilizing a certified Class 10,000 cleanroom that operates under the guidelines of the FDA's Good Manufacturing Practices for Medical Devices. All modules are flushed with high purity, non-pyrogenic deionized water, 100% integrity tested, and serialized to provide complete product traceability. A Certificate of Quality accompanies each completed cartridge detailing all lot, audit, and general testing requirements.

SWT 100% Polyproplene Specifications:

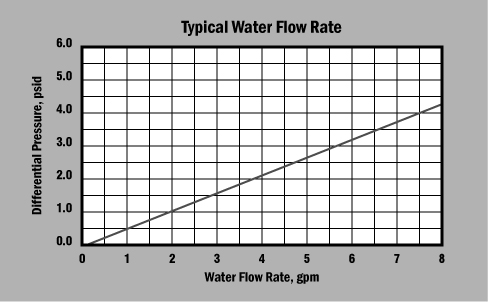

Typical Flow Rates:

Air:	44 scfm/psid (18 slpm/mbar)
Liquid:	1.9 gpm/psid (1O4 lpm/bar)

Materials of Construction:

Membrane:	PTFE
Support Layers:	Polypropylene
Cartridge Hardware:	Polypropylene

All components meet USP XXlll Class VI -121°C criteria and are thermally bonded to assume integrity and minimize extractable.

Steam Sterilizable and Sanitizable:

Cartridges may be steamed or autoclaved for over 100 one-hour cycles @ 275ºF (145ºC). Cartridges may also be chemically sanitized in place using common sanitizing agents. Please contact SWT for detailed procedures.

Bacteria Retention:

Bacteria retention greater than 100,000,000/cm² per HIMA methodology for 0.2 micron sterilizing grade filters using Brevundimonas diminuta.

Effective Filtration Area:

9.3 ft² (0.86 m²)

Maximum Operating Differential Pressure:

Forward:	8O psid (5.5 bar) @ 75ºF (24ºC)
Reverse:	50 psid (3.4 bar) @ 75ºF (24ºC)

Traceability:

Each cartridge is given a unique serial number to provide immediate product traceability.

Integrity Test Values:

Micron Pore Size:	0.2 µm
Bubble Point:	>21 psig (1.45 bar)
Diffusional Flow:	<25 cc/min
Test Pressure:	17 psig (1.17 bar)

(Tested in 60% Isopropanol / 40% Deionized Water)
