SWT PES Membrane Cartridges
SWT’s Polyethersulfone (PES) Membrane Cartridges have been developed for the filtration of high purity liquids.
SWT’s Polyethersulfone (PES) Membrane Cartridges are inherently hydrophillic and contain no added surfactants or wetting agents. Each cartridge is fabricated in a cleanroom environment. This cartridge’s greatest strength derives from the use of its unique mirrored anisotropic polyethersulfone membrane with a narrow pore size distribution. This membrane produces a cartridge with exceptionally high flow rates and long on-stream life.

Safe Water Technologies PES membrane and all-polypropylene supportive structures result in a cartridge with low ionic and organic extractables, broad chemical compatibility, and a high resistance to hydrolysis, thus minimizing particle shedding.


    Advantages
  • All materials meet FDA/USP requirements
  • High flow rates, long on-stream life
  • Broad chemical compatibility
  • USP Class VI-121ºC certified
  • Low differential pressures
  • Resistance to hydrolysis
  • Low extractables

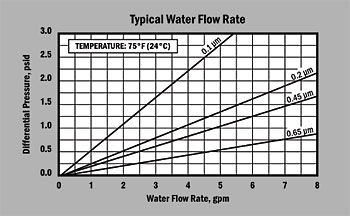

SWT PES Absolute Cartridge Flow Graph


Applications
Chemical filtration; liquid clarification; recirculating fluids; general use water filtration; deionized water systems


Specifications
Pore Size Ratings & Liquid Flow Rates: *
— 0.1 µm: 1.8 gpm/psid (0.10 lpm/mbar)
— 0.2 µm: 3.7 gpm/psid (0.20 lpm/mbar)
— 0.45 µm: 4.8 gpm/psid (0.26 lpm/mbar)
— 0.65 µm: 9.2 gpm/psid (0.51 lpm/mbar)
Materials of Construction:
— Depth Media: Polyethersulfone (PES)
— Support Layers: Polypropylene
— Housing: Polypropylene
Max. Operating Temperature:
160ºF (71ºC)
Max. Differential Pressure:
— Forward: 80 psid (5.5 bar) @ 75ºF (24ºC)
— Reverse: 50 psid (3.4 bar) @ 75ºF (24ºC)
Biosafety:
All components meet USP-XXIII Class VI-121ºC criteria
Chemical Compatibility:
Cartridges are chemically compatible with most ultra-pure chemicals and sanitizing agents
Sealing Methods:
All components are thermally bonded to assure integrity and to reduce extractables
Packaging:
Bulk packaged in case quantities to reduce material disposal
— 10 inch: 28 per carton
— 20 inch: 12 per carton
— 30 inch: 12 per carton
— 40 inch: 9 per carton

* For fluids with viscosity of 1 cp per 10 inch (25 cm) cartridge equivalent.


Ordering Information
0.1 Micron Polyethersulfone Absolute Filter Cartridges
0.2 Micron Polyethersulfone Absolute Filter Cartridges
0.45 Micron Polyethersulfone Absolute Filter Cartridges
