Absolute Cartridges
SWT logo 100% Polypropylene Absolute Cartridges

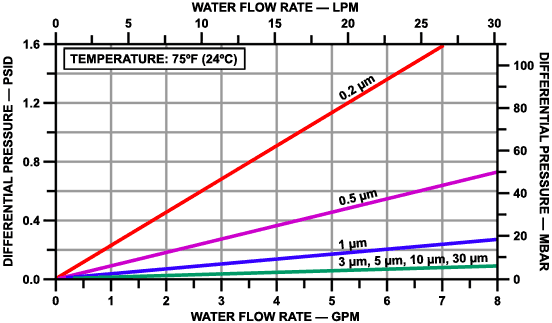

Typical Water Flow Rate Curves




For a wide variety of general process applications from fluids clarification to general prefiltration, Safe Water Technologies has developed the SWT 100% Polyproplene product line. SWT 100% Polyproplene is fabricated using high dirt-loading, random fiber polyproplene depth media that provides consistent particle retention. Longer filtration life reduces cartridge purchases, downtime due to change-outs, and disposal costs. SWT 100% Polyproplene leads in overall reduction of filtration costs when compared to spun-bonded, string wound, and normally rated pleated prefilter cartridges.

Fabrication using strictly virgin polyproplene components combined with thermal bonding results in excellent chemical compatibility, thermal stability, and low cartridge extractables. SWT 100% Polyproplene is manufactured in a controlled environment and is bulk packaged to reduce material disposal costs.



Applications
• Solvent Filtration
• Liquid Clarification
• Recirculating Liquids
• General Water Filtration
• Reagent Grade Chemicals
• Beverage/Wine Clarification
• RO/DI Pre-Filtration
• Waste Water
Advantages
• All materials meet FDA/USP requirements
• High Flow Rates/Long On-Stream Life
• Broad Chemical Compatibility
• USP Class VI-121ºC Certified
• Low Differential Pressures
• Thermally Bonded
• Low Extractables



SWT 100% Polyproplene Specifications:

Available Nominal Pore Size Ratings:    0.2, 0.5, 1, 3, 5, 10, and 30 micron
Materials of Construction:
Depth Media: Polypropylene
Support Layers: Polypropylene
Housing: Polypropylene
Maximum Operating Temperature:   160ºF (71ºC)
Maximum Differential Pressure:   Forward: 80 psid (5.5 bar) @ 75ºF (24ºC)
Reverse: 40 psid (2.8 bar) @ 75ºF (24ºC)
Biosafety:   All components meet USP-XXIII Class VI criteria
Packaging Economy:   Bulk packaged in case quantities to reduce material disposal:
10 inch...   28 per carton
20 inch... 12 per carton
30 inch... 12 per carton

40 inch...

9 per carton
Sealing Methods:    All components are Thermally Bonded to assure integrity and to reduce extractables.
