SWT's Inline Static Mixers
Pictured Left to Right:

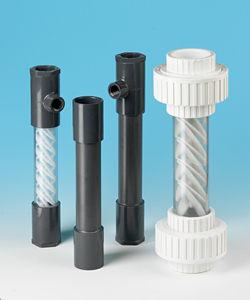

NE-MA-4CLR, NE-MA-6, NE-MA-1, NE-MA-7
These economical, easy-to-install, Inline Static Mixers are built for a long, maintenance-free life with a PVC outer construction and a polypropylene baffle. The static mixing design with NO moving parts insures an immediate and thorough mix of any combination of gas or liquid. These chemical mixers can eliminate the need for retention tanks in many applications.
  APPLICATIONS
  • Iron and manganese   • Tannin
  • Hydrogen sulfide   • pH control
  • Corrosion control   • Polymers and flocculants
  • Boilers   • Blending
  • Laundries   • Agriculture
  • Car washes   • Disinfection
  • Cooling towers   • Waste water treatment
  • Pools, spas, and
fountains		   • Pre- and post-reverse
osmosis treatment


Residential Sized, High Efficiency Inline Static Mixers (With Injector Port)
Part
Number		 Tube
Color		 Recommended
Flow Rate		 Inlet / Outlet
Pipe Size		 Injection
Port		 Maximum
Temperature		 Maximum
Pressure		 Dimensions
Inches
NE-MA-1 Gray 2 to 20 GPM 0.75" FNPT 0.5" FNPT* 110°F 100 PSI 2 x 12.5
NE-MA-1CLR Clear 2 to 20 GPM 0.75" FNPT 0.5" FNPT* 110°F 100 PSI 2 x 12.5
NE-MA-4 Gray 3 to 25 GPM 1" FNPT 0.5" FNPT* 110°F 100 PSI 2 x 12.5
NE-MA-4CLR Clear 3 to 25 GPM 1" FNPT 0.5" FNPT* 110°F 100 PSI 2 x 12.5
NE-MA-6C Gray 5 to 30 GPM 1.25" Socket 0.5" FNPT* 110°F 100 PSI 2 x 11
  * Assembled with 0.5 inch FNPT injection port and a 0.5 x 0.25 inch NPT reducer is included.

Inline Static Mixers — Low Pressure Drop (No Injector Port)
Part
Number		 Tube
Color		 Recommended
Flow Rate		 Inlet / Outlet
Pipe Size		 Injection
Port		 Maximum
Temperature		 Maximum
Pressure		 Dimensions
Inches
NE-MA-6 Gray 5 to 30 GPM 1.25" Socket N/A 110°F 100 PSI 2 x 11
NE-MA-6-U40* Gray 5 to 30 GPM 1.25 " Socket N/A 110°F 100 PSI 2 x 11
NE-MA-6-U80** Gray 5 to 30 GPM 1.25" Socket N/A 110°F 100 PSI 2 x 11
NE-MA-7 Clear 20 to 85 GPM 2" Union
Socket Weld		 N/A 110°F 100 PSI 4.125 x 14
  * With Sch. 40 PVC Unions added.
** With Sch. 80 PVC unions added.


Without Static Mixer
Without Static Mixer

With Static Mixer
With Static Mixer
1-inch Inline Static Mixer Pressure Drop Graph

The above graph represents the flow rate and related pressure loss from the 1-inch Inline Static Mixer (P/N NE-MA-4).
Click to enlarge.

Flow Rate vs. Pressure Drop for NE-MA7
@ 20 gpm = 1.3 psi loss
@ 50 gpm = 8 psi loss
@ 85 gpm = 23 psi loss
