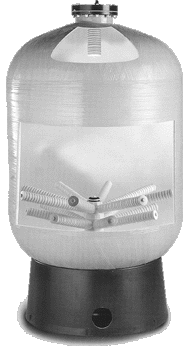

These Molded Polypropylene
Distribution Systems for composite tanks feature chemical and impact resistance for a variety of
applications.
Unique ¼ turn, cam-lock hubs and laterals make assembly
and installation easy and secure.
With proper underbedding, the unique slot design assures a uniform, vertical
distribution of flow, and less than 5 PSI pressure drop at designated flow
rates. These distribution systems will operate at temperatures up to 120ºF. |
|
| |
| |
 |
Distribution System for Composite Tanks
with 4 inch Threaded Top Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-5665
|
Hub and 6 Laterals |
29 |
13 to 16 |
1.5" Socket |
|
TS-5666
|
Hub and 6 Laterals |
29 |
18 to 21 |
1.5" Socket |
|
TS-5667
|
Hub and 6 Laterals |
29 |
24 |
1.5" Socket |
NOTE: Flow rates are calculated with a 5 psi pressure drop.
Riser tube is not included with distribution system. |
|
|
|
| |
| |
 |
Top/Bottom Diffuser for Composite Tanks
with 4 inch Threaded Top/Bottom Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-5671
|
Top or Bottom Stack Diffuser |
88 |
12 to 36 |
2" Socket |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
Bottom Hub and Laterals for Composite Tanks
with 4 inch Threaded Bottom Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-5669
|
Bottom Mount Hub and Laterals |
100 |
18 to 21 |
2" Socket |
|
TS-5670
|
Bottom Mount Hub and Laterals |
100 |
24 |
2" Socket |
|
TS-11039
|
Bottom Mount Hub and Laterals |
100 |
30 |
2" Socket |
|
TS-11040
|
Bottom Mount Hub and Laterals |
100 |
36 |
2" Socket |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
|
Distribution System for Composite Tanks
with 6 inch Threaded Top Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-10848
|
Hub and 8 Laterals |
104 |
30 |
1.5" Socket |
|
TS-10849
|
Hub and 8 Laterals |
104 |
36 |
1.5" Socket |
NOTE: Flow rates are calculated with a 5 psi pressure drop.
Riser tube is not included with distribution system. |
|
|
|
| |
| |
|
Distribution System for Composite Tanks
with 6 inch Flanged Top Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-12201
|
Hub, 8 Laterals, and Flange |
104 |
24 |
3" Socket |
|
TS-5672
|
Hub, 8 Laterals, and Flange |
104 |
30 |
3" Socket |
|
TS-5673
|
Hub, 8 Laterals, and Flange |
104 |
36 |
3" Socket |
|
TS-5674
|
Hub, 8 Laterals, and Flange |
104 |
42 |
3" Socket |
|
TS-5675
|
Hub, 8 Laterals, and Flange |
104 |
48 |
3" Socket |
|
TS-13492
|
Hub, 8 Laterals, and Flange |
104 |
63 |
3" Socket |
NOTE: Flow rates are calculated with a 5 psi pressure drop.
Riser tube is not included with distribution system. |
|
|
|
| |
| |
 |
High Flow Distribution System for Composite Tanks
with 6 inch Flanged Top Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-11776
|
Hub, 16 Laterals, and Flange |
173 |
30 |
3" Socket |
|
TS-11778
|
Hub, 16 Laterals, and Flange |
173 |
36 |
3" Socket |
|
TS-5676
|
Hub, 16 Laterals, and Flange |
173 |
42 |
3" Socket |
|
TS-5677
|
Hub, 16 Laterals, and Flange |
173 |
48 |
3" Socket |
|
TS-13569
|
Hub, 16 Laterals, and Flange |
173 |
63 |
3" Socket |
NOTE: Flow rates are calculated with a 5 psi pressure drop.
Riser tube is not included with distribution system. |
|
|
|
| |
| |
 |
Top/Bottom Diffuser for Composite Tanks
with 6 inch Flanged Top/Bottom Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-5679
|
Top or Bottom Diffuser |
88 |
18 to 48 |
3" FNPT |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
High Flow Top Diffuser for Composite Tanks
with 6 inch Flanged Top Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-5680-1
|
High FLow Top Diffuser |
200 |
21 to 24 |
3" FNPT |
|
TS-5680-2
|
High FLow Top Diffuser |
200 |
30 to 63 |
3" FNPT |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
Bottom Hub and Laterals for Composite Tanks
with 6 inch Flanged Bottom Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-11790
|
Bottom Mount Hub, Laterals, and Flange |
122 |
18 |
3" FNPT |
|
TS-5678
|
Bottom Mount Hub, Laterals, and Flange |
122 |
21 to 24 |
3" FNPT |
|
TS-5683
|
Bottom Mount Hub, Laterals, and Flange |
122 |
30 |
3" FNPT |
|
TS-5684
|
Bottom Mount Hub, Laterals, and Flange |
122 |
36 |
3" FNPT |
|
TS-5686
|
Bottom Mount Hub, Laterals, and Flange |
122 |
42 to 48 |
3" FNPT |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
High Flow Hub and Laterals for Composite Tanks
with 6 inch Flanged Bottom Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-11892
|
Bottom Mount Hub, Laterals, and Flange |
167 |
36 |
3" FNPT |
|
TS-11663
|
Bottom Mount Hub, Laterals, and Flange |
167 |
42 |
3" FNPT |
|
TS-11665
|
Bottom Mount Hub, Laterals, and Flange |
167 |
48 |
3" FNPT |
|
TS-14248
|
Bottom Mount Hub, Laterals, and Flange |
167 |
63 |
3" FNPT |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
Bottom Header for 63 inch Composite Tanks
with 6 inch Flanged Bottom Opening |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Diameter
Inches |
Pipe
Connection |
|
TS-5687
|
Bottom Header, Laterals, and Flange |
170 |
63 |
3" FNPT |
| NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
Distribution System for 63 inch Composite Tanks
with 4 inch Flanged Side Opening, 6 inch Flanged Bottom Opening, and 16 inch Top Manway |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Size
Inches |
Pipe
Connection |
|
TS-11190
|
Inlet: 4 inch Flanged Upper Side
Outlet: 6 inch Flanged Bottom |
130* |
63 x 86 |
3" MNPT (Side)
3" FNPT (Bottom) |
|
TS-11192
|
Inlet: 4 inch Flanged Upper Side
Outlet: 6 inch Flanged Bottom |
130* |
63 x 116 |
3" MNPT (Side)
3" FNPT (Bottom) |
|
TS-11194
|
Inlet: 4 inch Flanged Upper Side
Outlet: 6 inch Flanged Bottom |
130* |
63 x 144 |
3" MNPT (Side)
3" FNPT (Bottom) |
* Upper Flow Rate: 130 gpm. Lower Flow Rate: 170 gpm
NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
| |
 |
Distribution System for 63 inch Composite Tanks
with (2) 4 inch Flanged Side Openings, 6 inch Flanged Bottom Opening, and 16 inch Top Manway |
|
Part
Number |
Description |
Flow
Rate
GPM |
Tank
Size
Inches |
Pipe
Connection |
|
TS-11191
|
Inlet: 4 inch Flanged Upper Side
Outlet: 4 inch Flanged Lower Side |
130* |
63 x 86 |
3" MNPT (Side)
3" FNPT (Bottom) |
|
TS-11193
|
Inlet: 4 inch Flanged Upper Side
Outlet: 4 inch Flanged Lower Side |
130* |
63 x 116 |
3" MNPT (Side)
3" FNPT (Bottom) |
|
TS-11195
|
Inlet: 4 inch Flanged Upper Side
Outlet: 4 inch Flanged Lower Side |
130* |
63 x 144 |
3" MNPT (Side)
3" FNPT (Bottom) |
* Upper Flow Rate: 130 gpm. Lower Flow Rate: 170 gpm
NOTE: Flow rates are calculated with a 5 psi pressure drop. |
|
|
|
| |
