Safe Water Technologies’ BetterLife™ Systems are the flagship of the SWT
product line. There are no other water treatment systems available for the whole house that compare.
X

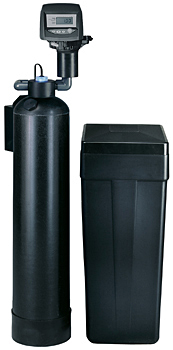

BetterLife™ System 2 features a computerized
controller to meter the water flow for optimal cost savings. The ion exchange portion of the system utilizes ProSoft™
Resin as the primary layer. These cation exchange units are designed to remove calcium and magnesium (hardness) and a host
of other cations from the water stream. The ultraviolet design adds bacteriological safeguards to your water supply.
Includes:
- ProSoft™ Premium cation exchange resin
- 10 gpm stainless steel ultraviolet chamber
- 30,000 µw sec/cm² UV dosage
- Computer controlled and metered valve
- Chlorastick™ pipe sanitizing kit
- Corrosion free system
|
| BetterLife™ System 2 with UV Sterilization |
|
Part
Number |
Tank Size
Inches
|
Softening Capacity |
Service
Standard
Flow Rate |
Service
Peak Flow
Rate |
Backwash
50% Exp.
@ 50ºF |
Standard
Connection
Size* |
10 lbs.
Salt/Cu.Ft. |
15 lbs.
Salt/Cu.Ft. |
| BL2-100 |
10 x 47 |
29,000 gr. |
33,000 gr. |
5 GPM |
10 GPM |
2.0 GPM |
3/4" Copper Swet |
| BL2-175 |
12 x 48 |
51,000 gr. |
57,000 gr. |
8 GPM |
10 GPM |
3.7 GPM |
3/4" Copper Swet |
High Sediment & Rural Applications
(System Includes Option BLS-R: 10 Micron Pre-filter & 20 inch Clear Housing) |
|
Part
Number |
Tank Size
Inches |
Softening Capacity |
Service
Standard
Flow Rate |
Service
Peak Flow
Rate |
Backwash
50% Exp.
@ 50ºF |
Standard
Connection
Size* |
10 lbs.
Salt/Cu.Ft.
|
15 lbs.
Salt/Cu.Ft.
|
| BL2-100R |
10 x 47 |
29,000 gr. |
33,000 gr. |
5 GPM |
10 GPM |
2.0 GPM |
3/4" Copper Swet |
| BL2-175R |
12 x 48 |
51,000 gr. |
57,000 gr. |
8 GPM |
10 GPM |
3.7 GPM |
3/4" Copper Swet |
* 1 inch connections and threaded adapters available on request.
International voltages available at additional cost.
Additional Specifications:
Shipping Dimensions (Inches):
BL2-100: 17 x 13 x 58 @ 95 lbs. / Brine Tank: 18 x 16 x 37 @ 30 lbs.
BL2-175: 17 x 13 x 59 @ 145 lbs. / Brine Tank: 18 x 16 x 37 @ 30 lbs.
Operating Pressure: 20 to 125 PSI
Operating Temperature: 36 to 120ºF (2 to 48.9ºC) |
|
|
Part Number
|
Description
|
|
BLS-R
|
10 Micron, Pleated Pre-filter with 20 inch Clear, Bypass Housing
— Highly Recommended For Rural Applications |
|
BLS-C
|
Whole House Carbon Cartridge Assembly
— Includes 20 inch Big Blue Housing/Big Blue GAC Cartridge/Bracket |
|
BLS-P
|
1 Micron, Absolute Post-filter Assembly For Cryptosporidium and Giardia Cyst Removal |
|
BLS-E
|
Instant Start Electronic Ballast (Auto-detects 50/60 Hz) |
|
BLS-A
|
Controller Board with Lamp Status LED, Audible Alarm, and Solenoid Valve Hook-up |
|
BLS-S
|
Solenoid Valve Assembly — Requires Upgraded Electronic Ballast |
| Other media substitutions are available (nitrate, tannin, etc.). |
|
 |
 |
 |
Chlorastick™
Pipe Sanitizing Kit
(Included)
| Contains: |
| • |
Brass, Lever Action |
| • |
Brass Ball Valves |
| • |
Quick Release Union Fittings with O-Ring Seals |
| • |
Disposable Chlorine Chamber |
| • |
Sch 80 PVC Replacement Pipe |
|
Pre-filter Assembly
(Optional)
| Contains: |
| • |
20 inch Clear Housing with Built-in Bypass and 0.75 inch NPT |
| • |
2.5 x 20 inch
Pleated Cartridge
with 10 Micron Filtration |
| • |
Spanner Wrench |
| • |
Wall Mount Bracket |
|
Post-filter Assembly
(Optional)
| Contains: |
| • |
20 inch Big Blue Sump with Pressure Relief and 0.75 inch NPT |
| • |
4.5 x 20 inch Pleated Cartridge with
1 Micron Filtration
for Giardia Cysts |
| • |
Spanner Wrench |
| • |
Wall Mount Bracket |
|
|
Part Number |
Description |
|
IL10001 |
Ultraviolet Lamp |
|
CF73210 |
10 Micron Pleated Sediment Cartridge (2.5 x 20 inch Pre-filter) |
|
AH-PPBB210 |
1 Micron Absolute Pleated Cartridge for Cryptosporidium and Giardia Cysts
(4.5 x 20 inch Post-filter) |
|
APS-CSRA |
Replacement Chlorastick™ Pipe Sanitizing Module |
|
IL30001 |
Quartz Sleeve |
|
UL-118RS |
Red Silicone O-Ring for Quartz Sleeve |
|
EC-LL68 |
Safety Spring |
|
MA-155153-43 |
Granular Activated Carbon Cartridge for Big Blue Housing (4.5 x 20 inch) |
Warning and Disclaimer: Ultraviolet treatment, chlorinating, or any other form of
sanitation of contaminated water, is never a 100% guaranteed for bacteriological free water, but are EPA approved methods of water sanitation
which add greatly to protection against waterborne pathogens. Proper ultraviolet sterilization is an instantaneous process which destroys
99.97% of pathogens and leaves no UV residual in the water. Periodic monitoring of the water supply and of the downstream piping system
sanitation is recommended to help guard against downstream contamination or accidental contaminated water bypass. Ultraviolet sterilization
and/or chlorine, is not recommended and should not be used for cyst treatment.
|
