| APPLICATIONS: |
| • |
Portable Exchange D.I. |
| • |
Potable Water |
| • |
Pharmaceutical |
| • |
Demineralizer applications requiring high resistivity and low amine odor |
|
| |
| |
 |
| |

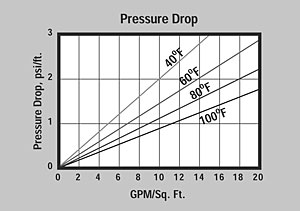

| PRESSURE DROP — The graph above shows the expected pressure loss per foot of bed depth
as a function of flow rate at various temperatures. |
| |
| |
 |
| |

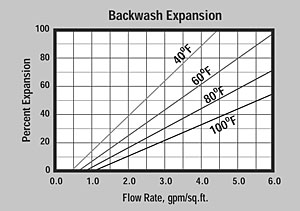

| BACKWASH — The backwash step is used to separate the components prior to regeneration
and to remove particles. The separation is optimized at a bed expansion of 50 to 75 percent. |
| |
| |
|
CAUTION: DO NOT MIX ION EXCHANGE RESINS WITH
STRONG OXIDIZING AGENTS. Nitric acid and other strong oxidizing agents can cause explosive reactions
when mixed with organic materials such as ion exchange resins.
|
| |
| |
| ProBlend™, ProSoft™, and ProSelect™ are trademarks of Safe Water Technologies, Inc. |
|
|
| |
Features: |
|
| |
• |
Conforms to paragraph 21 CFR173.25 of the Food Additives Regulations of the FDA |
|
| |
• |
Highest operating capacity |
|
| |
• |
Low amine odor throw |
|
| |
• |
Superior organic fouling resistance |
|
|
| |
| PHYSICAL PROPERTIES |
| Part Number |
ER30001 |
Functional Structure
Cation (Hydrogen Form)
Anion (Hydroxyl Form) |
RSO3-H+ (Gel)
R4N+OH- (Type 2 Gel) |
| Physical Form |
Spherical beads |
Screen Size Distribution
+ 16 mesh (US Std.)
– 50 mesh (US Std.) |
5% maximum
2% maximum |
| pH Range |
0 to 14 |
Moisture Content
(as shipped) |
50% maximum |
| Approx. Ship. Wt. |
44 lb/cu.ft. |
Volume Ratio (as shipped)
Cation
Anion |
42%
58% |
Total Capacity
Cation (Na+ form)
Anion (Cl- form) |
1.95 meq/mL min.
1.45 meq/mL min. |
|
| |
| SUGGESTED OPERATING CONDITIONS |
Maximum Temperature
Non-regenerable*
Regenerable |
140°F (60°C)
95°F (35°C) |
| Operating Flow Rate (Typical) |
2 to 10 gpm/cu.ft. |
Backwash Rate
50% Bed Exp. @60°F |
(See graph left)
3.3 gpm/sq.ft. |
| Pressure Drop |
See graph left |
| Effluent Quality |
15 megohm minimum |
Percent Conversions to Ionic Form
Cation H
Anion OH
Cl + SO4
CO3 |
99% minimum
90% minimum**
10% maximum
** (see note below) |
|
| * |
6 month typical resin life at 140 ºF. |
| ** |
Hydroxides and CO3 levels measured immediately after production and may change during
storage and shipment due to adsorption of CO2 from the atmosphere.
|
|
| |
ADDITIONAL INFORMATION:
SWT Ion Exchange Resin Guide |
| |
| |
|
This information has been gathered from standard materials and or test data that is
believed to be accurate and reliable. Nothing herein shall be determined to be a warranty or representation
expressed or implied with respect to the use of such information or the use of the goods described for any
particular purpose alone or in combination with other goods or processes, or that their use does not conflict
with existing patent rights. No license is granted to practice any patented invention. It is solely for your
consideration, investigation and verification.
|
|
