ProActive Acid-Washed 20 x 50 Carbon Filtration Media

Filtration Media

ProActive™ Acid-Washed 20 x 50 Carbon

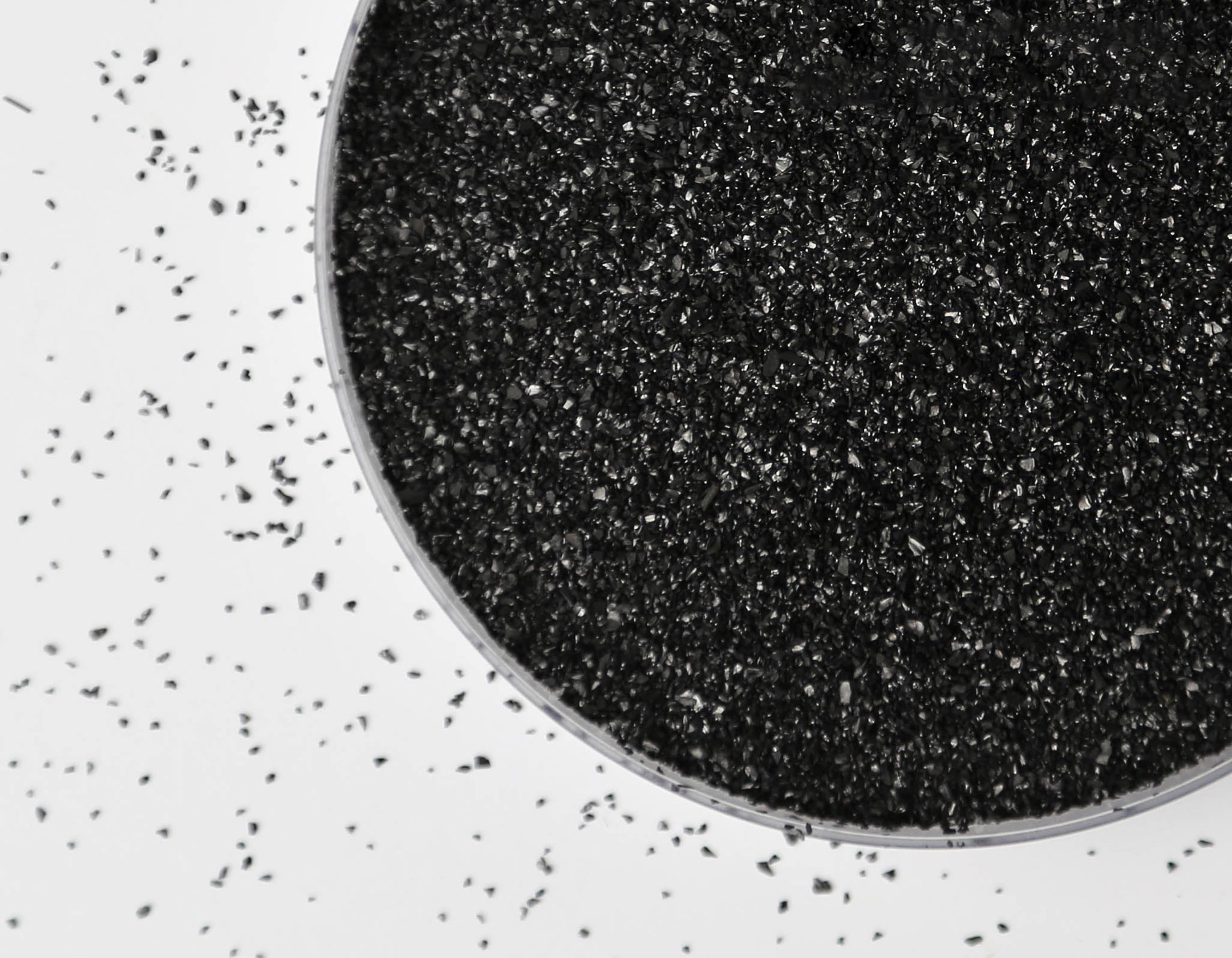

ProActive™ Acid Washed 20 x 50 Granular Activated Carbon (P/N IT50006) is made from a superior quality anthracite and non-viscous coal with naturally low ash, low sulphur and phosphorous content. It is manufactured through high temperature steam activation under stringent quality control. It has a large surface area, high pore volume, high mechanical hardness and chemical stability, longer operating life, and it is easy to regenerate. It is used in liquid purification, filtration, and water treatment for the removal of organic contaminates, odor, taste, color, and turbidity. The product meets the standards of Food and Chemical Codex for activated carbon.

SPECIFICATIONS
Part Number	IT50006
US Standard Mesh Size — Greater than 20 — Less than 50	20 x 50 5% maximum 5% maximum
Backwash Expansion	35% to 40%
Backwash Rate	6 to 8 gpm/sq.ft. @ 55°F
Chlorine Reduction @ 1ppm Influent 2 gpm flow rate per cu.ft.	5,000,000 gal
Iodine Number	1,000 mg/g minimum
Molasses Number	210 mg/g minimum
Abrasion Number	90 ASTM minimum
Methylene Blue	180 mg/g minimum
Benzene Number	38 minimum
CTC	65 minimum
Mean Particle Diameter	0.5 to 0.8 mm
Ash Content	7% maximum
pH	7
Moisture	3% maximum
Bulk Density	0.47 g/ml
Net Weight	27.5 lb / cu.ft.
Packaging	1 cu.ft. plastic lined, corrugated box

TYPICAL PROPERTIES
Total Surface Area (N2 B.E.T. method)	1,000 to 1,050 m²/g
Pore Volume	0.95 ml/g
Backwash & Drained Density	0.42 g/ml
Acid Soluble Ash	None
Acid Soluble Iron	0.5% maximum

View SWT Filtration Media Guide

ProActive™ is a trademark of Safe Water Technologies, Inc.

	Features:
	•	High adsorption capacity and efficiency
	•	Super durability that stands up well to backwash
	•	Low fines, no floats, rinses fast
	•	Low pH
	•	Certified to NSF/ANSI Standard 61

Warning
For safety and handling purposes, we recommend appropriate protective measures when entering a wet vessel containing granular activated carbon, because wet activated carbon depletes oxygen from air and therefore, dangerously low levels of oxygen may be encountered. In such a case, the oxygen level inside the vessel shall be determined before entering and appropriate protective equipment should be worn when entering, or leave the vessel open until the oxygen level in the vessel is normal.

This information has been gathered from standard materials and or test data that is believed to be accurate and reliable. Nothing herein shall be determined to be a warranty or representation expressed or implied with respect to the use of such information or the use of the goods described for any particular purpose alone or in combination with other goods or processes, or that their use does not conflict with existing patent rights. No license is granted to practice any patented invention. It is solely for your consideration, investigation and verification.
