ProActive 20 x 50 Carbon Filtration Media

Filtration Media

ProActive™ 20 x 50 Carbon

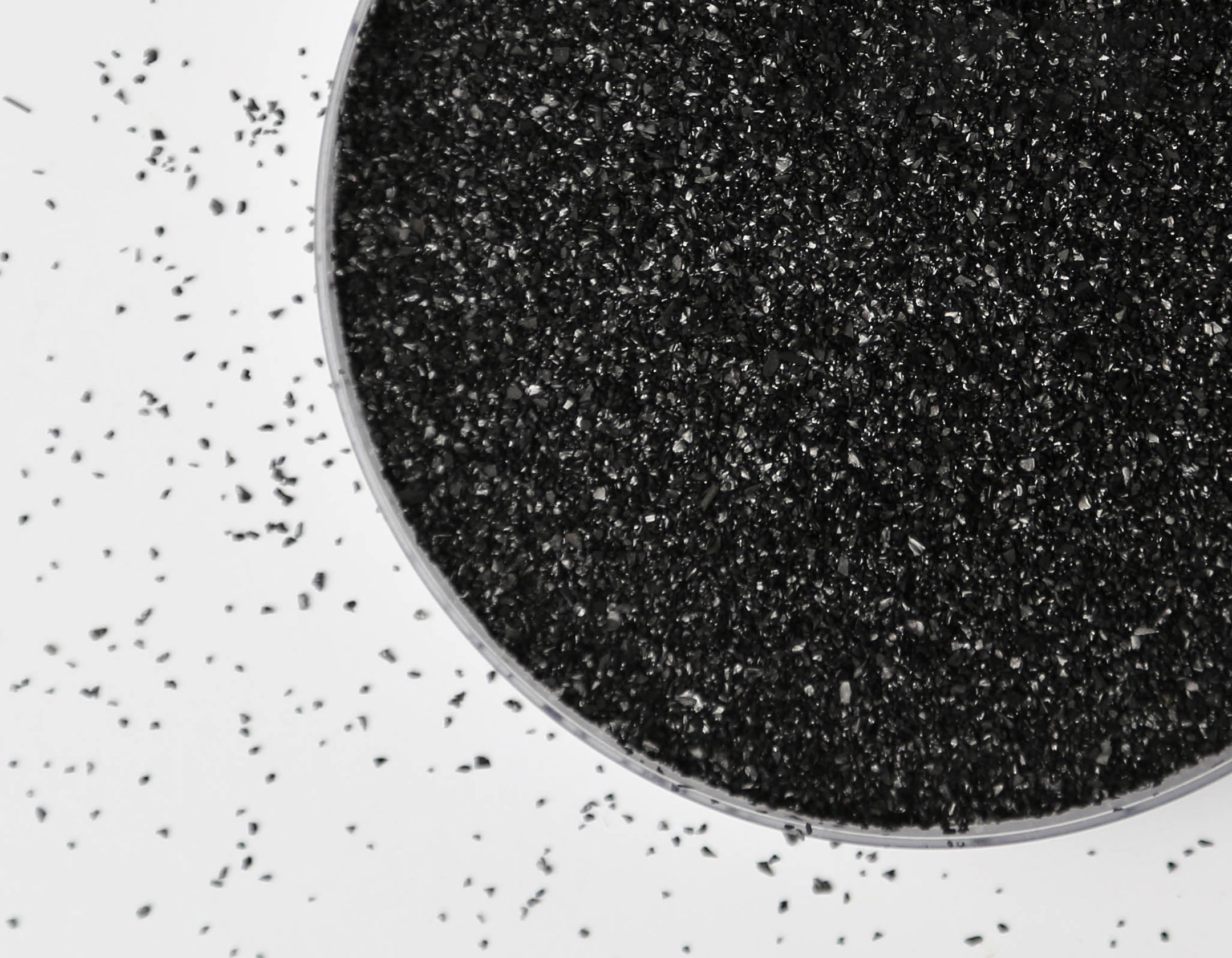

ProActive™ 20 x 50 Granular Activated Carbon (P/N IT50003) is made from a superior quality anthracite and bituminous, non-viscous coal. This 20 x 50 mesh carbon is the top of the line for chlorine reduction and is recommended for cartridge application or heavy chlorinated water. It is the best carbon we have for removal or reduction of organic contaminates, odor, taste, color, and turbidity.

SPECIFICATIONS
Part Number	IT50003
US Standard Mesh Size — Greater than 20 — Less than 50	20 x 50 5% maximum 5% maximum
Backwash Expansion	35% to 40%
Backwash Rate	6 to 8 gpm/sq.ft. @ 55°F
Chlorine Reduction @ 1ppm Influent 2 gpm flow rate per cu.ft.	5,000,000 gal
Iodine Number	1,000 mg/g minimum
Molasses Number	210 mg/g minimum
Abrasion Number	90 ASTM minimum
Methylene Blue	180 mg/g minimum
Benzene Number	38 minimum
CTC	65 minimum
Mean Particle Diameter	0.5 to 0.8 mm
Ash Content	12% maximum
pH	7
Moisture	3% maximum
Bulk Density	0.47 g/ml
Net Weight	27.5 lb / cu.ft.
Packaging	1 cu.ft. plastic lined, corrugated box

TYPICAL PROPERTIES
Total Surface Area (N2 B.E.T. method)	1,000 to 1,050 m²/g
Pore Volume	0.95 ml/g
Backwash & Drained Density	0.42 g/ml

View SWT Filtration Media Guide

ProActive™ is a trademark of Safe Water Technologies, Inc.

	Features:
	•	High adsorption capacity and efficiency
	•	Super durability that stands up well to backwash
	•	Low fines, no floats, rinses fast
	•	Low pH
	•	Certified to NSF/ANSI Standard 61

Warning
For safety and handling purposes, we recommend appropriate protective measures when entering a wet vessel containing granular activated carbon, because wet activated carbon depletes oxygen from air and therefore, dangerously low levels of oxygen may be encountered. In such a case, the oxygen level inside the vessel shall be determined before entering and appropriate protective equipment should be worn when entering, or leave the vessel open until the oxygen level in the vessel is normal.

This information has been gathered from standard materials and or test data that is believed to be accurate and reliable. Nothing herein shall be determined to be a warranty or representation expressed or implied with respect to the use of such information or the use of the goods described for any particular purpose alone or in combination with other goods or processes, or that their use does not conflict with existing patent rights. No license is granted to practice any patented invention. It is solely for your consideration, investigation and verification.
